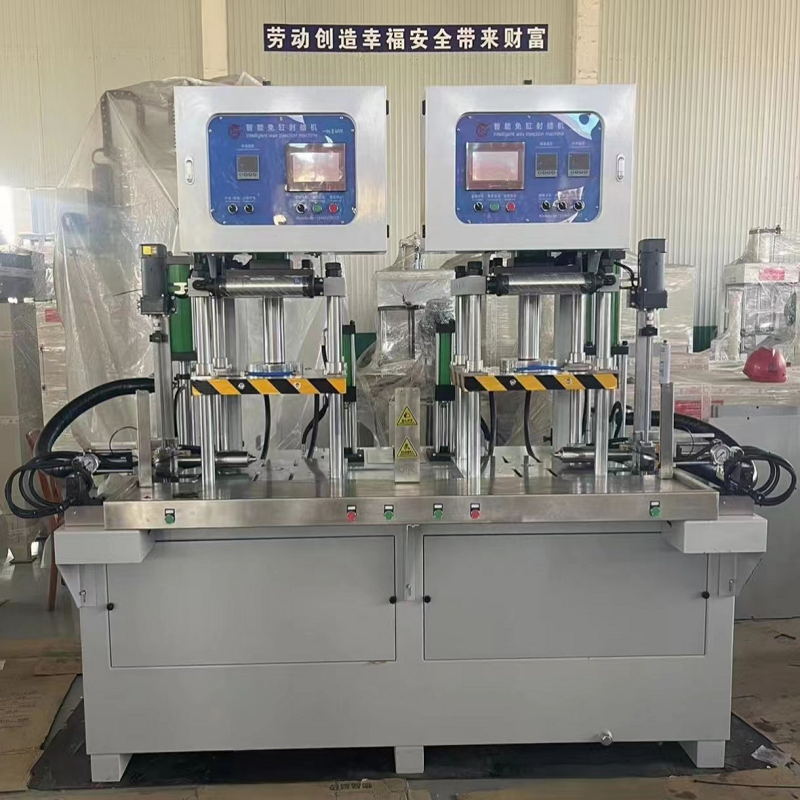

Wax Injection Double Column Free Cylinder Machine

Wax Injection Double Column Free Cylinder Machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
option:	YN-SMZ-10LB-Y

$21760- /Piece/Pieces

21760USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-10LB-Y

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Explain	Unit	YN-SMZ-10LB-Y
Clamping force (max)	T	10
Mold use space(L×W×H)	mm	460×430×500
Minimum height of the mold	mm	100
hydraulic oil tank	L	150
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

2,Description

1. The nozzle position is flexibly adjustable, supporting vertical, horizontal, and forward/backward movement to accommodate the wax injection positioning requirements of various molds.

2. The wax-free design simplifies the traditional precision casting process, eliminating the need for 24-hour waiting times for wax molds in an insulated chamber, significantly improving production efficiency.

3. Equipped with a three-layer wax tube cooler utilizing thermal oil for heating and cooling, the wax temperature is precisely and reliably controlled, with a temperature fluctuation range of no more than ±0.5°C and shrinkage consistently controlled within 0.5%.

4. Automatic, real-time closed-loop control of wax injection temperature, system pressure, and wax flow rate is implemented based on customer process requirements, ensuring easy operation and excellent consistency.

5. The wax flow pressure and flow rate can be independently adjusted, and a secondary pressurization function is included to effectively suppress wax mold shrinkage during cooling, ensuring stable mold dimensions and high-quality molding.

6. Key hydraulic and electrical components are imported brands, ensuring stable overall performance, low failure rates, and high overall cost-effectiveness.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015
