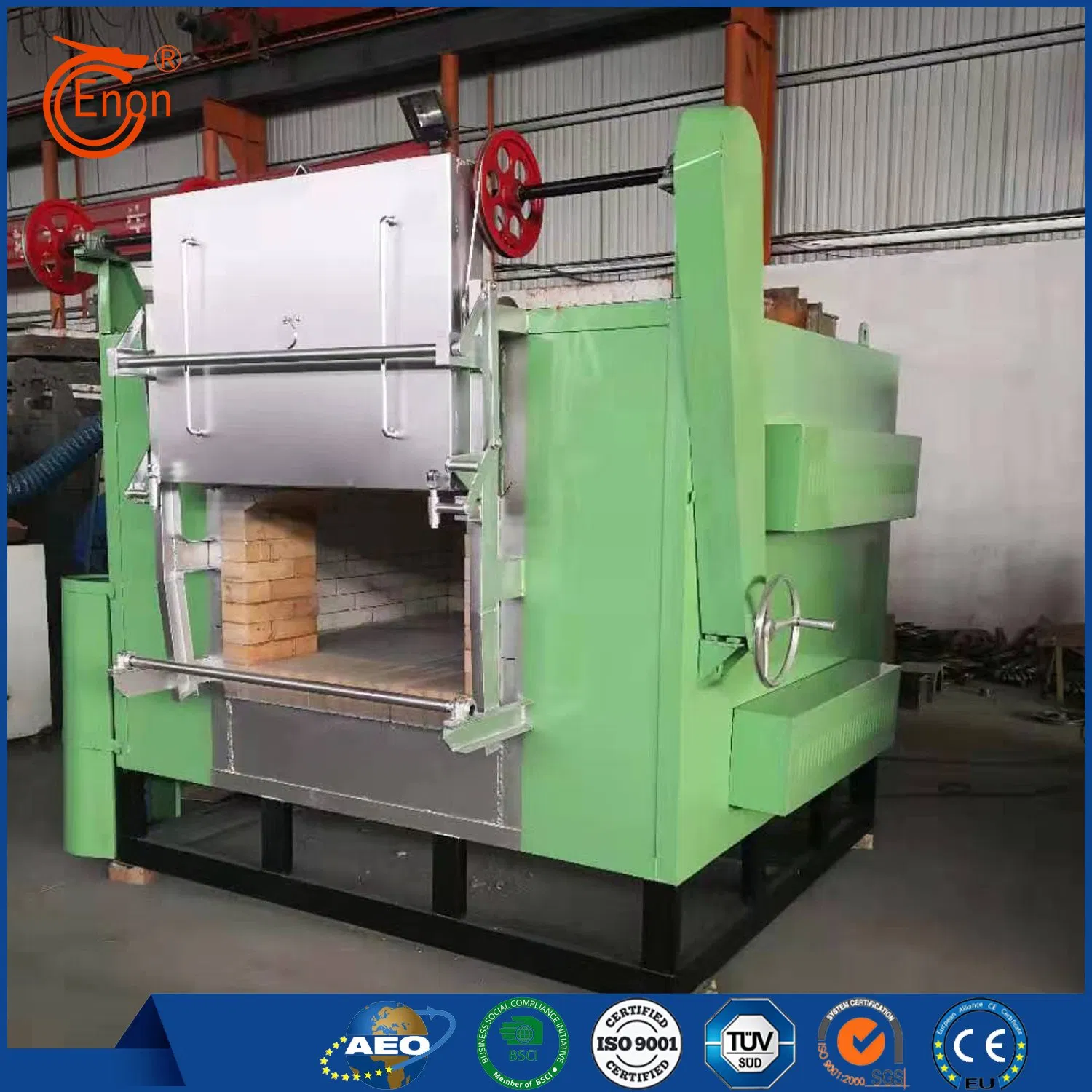

Electric Box Roasting Furnace with Competitive Pricing

Electric Box Roasting Furnace with Competitive Pricing

$17400- /Piece/Pieces

Payment Type:	T/T
Incoterm:	FOB,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao

Option:

YN-XPL-1.4*1.3

Contact Now

Product Description

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Certification: ISO9001:2015

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant, Machinery Repair Shops

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	wooden box package
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

High Quality Investment Casting Equipment 1.5 Box-Type Gas Roasting Furnace Global Hot Sell1



Product Description

1,Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages
2.1 It features a large loading capacity, powerful heat treatment capabilities for large workpieces, high efficiency, and low operating costs.

2.2 The furnace lining utilizes a complete fiber structure, effectively improving thermal insulation compared to brick-lined furnaces.

2.3 Small and medium-sized furnaces do not require a foundation and can be integrated with rails, allowing operation on level ground.

2.4 Large electric furnaces utilize zoned heating. To improve temperature uniformity, heating elements are installed at the furnace door, rear wall, and walkway. Large electric furnaces are also equipped with multiple automatic temperature control cabinets for automatic temperature control of each zoned heating. 2.5 The operation of the furnace door and bogie is fully automated. Each electrical box is equipped with several instruments and automatic monitors to provide relevant data.
