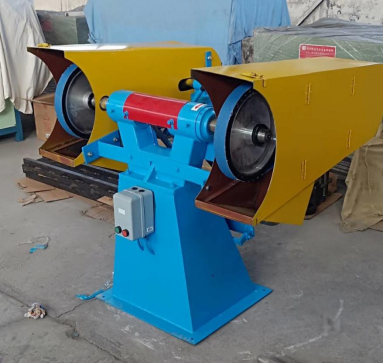

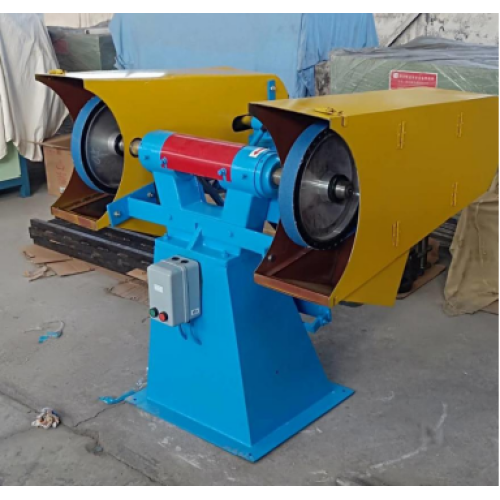

Double station polishing belt machine with dust cover

Double station polishing belt machine with dust cover

Payment Type:	T/T
Incoterm:	FOB,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
option:	YN-SDJ-400

$1550- /Piece/Pieces

1550USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-SDJ-400

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	woodenbox
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Product Name	Double station polishing belt machine with dust cover
Product Model	YN-SDJ-400
Sanding belt speed	36m/s
Rubber wheel diameter	Φ400mm
Sandbag size	Φ2100 x 50mm
Spacing between two wheels	800mm
Rated load	4kW, double-head type
Dual-station multi-purpose machine: grinding castings with abrasive wheels and belts, and polishing castings with a linen wheel.
Dual stations can operate simultaneously, providing high efficiency

Note: The equipment specifications and models can be customized according to customer requirements.

2. Product Features

The main features of a dual-station belt polishing machine are its design, structure, and functional configuration, designed to enhance efficiency and flexibility.

1. Dual-Station Synchronous/Independent Operation

Core Feature: A single machine integrates two completely independent polishing stations, typically driven by a single motor, which powers both abrasive wheels through a clever drive design (such as dual output shafts or belt drive).

Flexible Configuration: Each station can be equipped with abrasive belts of varying grits (e.g., one for rough grinding and one for fine polishing). After roughing a workpiece at one station, the workpiece can simply turn around or move to another station for fine finishing, eliminating the need to change belts, significantly saving time.

2. Efficient Power System

One Machine, Two Drives: A single motor drives the dual stations, ensuring sufficient polishing power while saving energy and space compared to purchasing two single-station machines.

Powerful and Stable: Typically equipped with a high-power motor, this ensures stable speed even when both stations are operating simultaneously under high load, preventing load fluctuations from affecting the polishing effect.

3. Humanized and Safety Design

Adjustable Worktable: Each workstation is typically equipped with an adjustable worktable with adjustable angle and height, allowing the operator to work with castings of varying shapes in the most comfortable position and precisely control the polishing angle.

Comprehensive Protective Covers: Each abrasive wheel is equipped with a transparent protective cover to effectively prevent foreign matter from flying out and facilitate monitoring of the polishing process. Safety features such as an emergency stop switch and a protective cover interlock are standard.

Integrated Dust Collection Port: The equipment is designed with a standard dust collection port that can be connected to a central dust collection system to effectively collect metal dust and sand generated by polishing, maintaining a clean work environment and protecting employee health.

4. High Rigidity and Anti-Clogging

Heavy-Duty Construction: The equipment body is typically constructed of sturdy cast iron or steel, offering excellent rigidity and shock absorption, ensuring smooth operation and preventing machining defects caused by vibration.

Belt Type: A combination of contact wheels and flat abrasive belts is widely used, suitable for processing complex curved and flat surfaces of castings.

Supply Ability & Additional Information

Packaging: woodenbox

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,EXW
