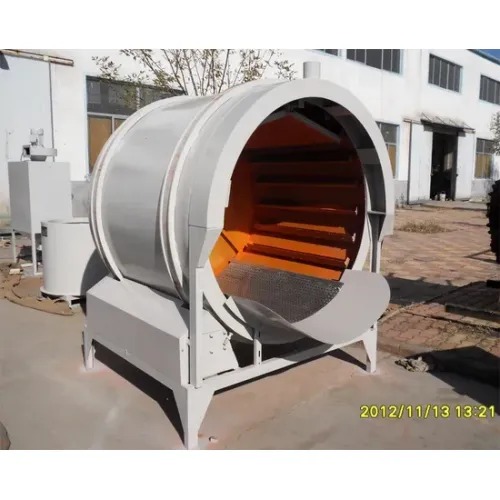

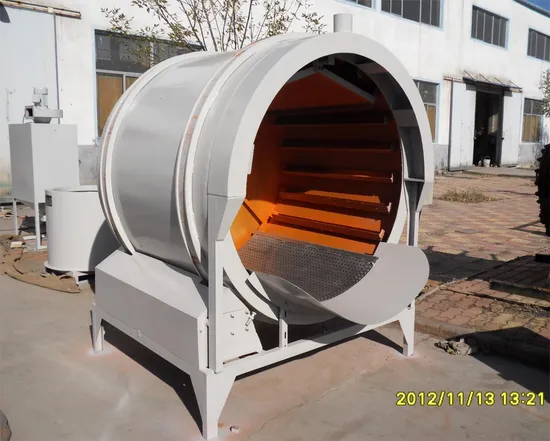

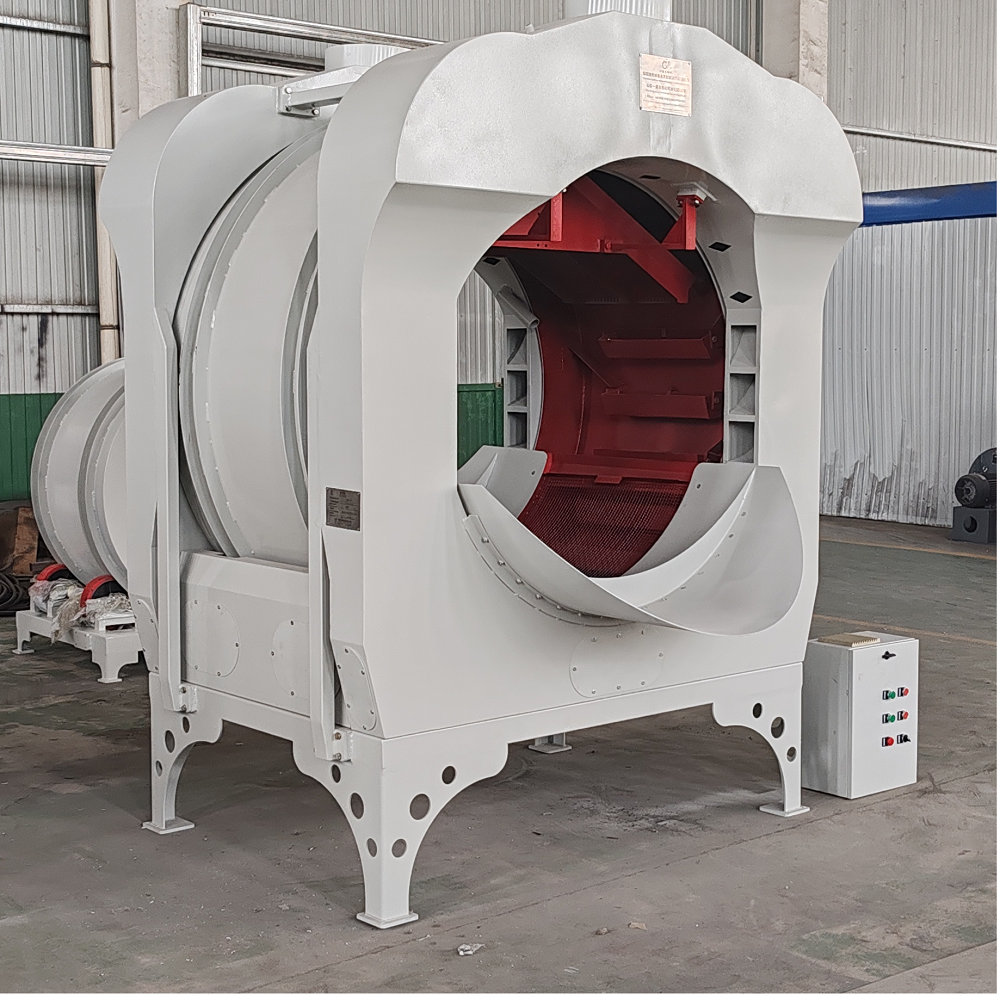

Industrial precision casting drum sandblasting machine

Industrial precision casting drum sandblasting machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao
Model:	YN-GLS-1500

$8090- /Piece/Pieces

8090USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-GLS-1500

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Spare Parts, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1. Technical parameters

Specifications and models	YN-GLS-1500
Working space diameter	1500mm
using electric	380V 50HZ
Rotating speed	1-10rpm(adjustable)
Outer cylinder size	1900mm
Installed power	3kw

2. Product Description

1. Equipment Structure and Operating Principle

This machine utilizes a single-station, four-column vertical template design, equipped with a hydraulic mold clamping system and thermal oil heating and insulation devices to ensure stable and reliable system operation. Its innovative thermal balance design keeps operating temperature fluctuations within ±1°C. 2. Safety Protection System

• Triple safety mechanism: manual start button, foot safety light curtain, and touch-sensitive guardrail

• Intelligent sensing system: stops mold closing within 0.1 second upon detecting abnormal contact

• Complies with CE safety certification standards

3. Hydraulic Control System

Driven by a Y-type servo motor, it provides:

• 0-20 MPa stepless pressure adjustment

• 0-100% flow rate precision control

• Manual fine-tuning function (±0.5% accuracy)

4. Automatic Ejector System

• Standard configuration: 6-12 ejector pins (optional)

• Adjustable ejector stroke: 50-150 mm

• Adjustable ejector speed: 0.1-1 m/s

• Supports automatic/manual dual modes

5. Wax Injection Pressure System

Two-stage pressure control system:

• Level 1: 0-15 MPa main pressure control

• Level 2: ±0.2 MPa precision fine-tuning

• Equipped with a digital pressure display

6. Nozzle Control System

• Hydraulically driven nozzle advance and retract (response time <0.5s)

• Servo motor-controlled lift (positioning accuracy ±0.1mm)

• Travel limit protection device

7. Safety devices

• Dual temperature overload protection (mechanical + electronic)

• Automatic overheating power off

• Abnormal temperature audible and visual alarm

8. Intelligent wax supply system

• High-precision liquid level sensor (±1mm)

• Automatic/manual mode switch

• Interlocking control of the wax melter

• Visual liquid level display

9. Precision temperature control system

Five-zone independent PID control:

1. Wax storage tank: 70-90°C (±0.5°C)

2. Left/right cooling cylinder: 55-58°C

3. Left/right wax extruder: 55-60°C

4. Wax injection nozzle: 55-60°C

5. Mold constant temperature control (optional)

10. Intelligent control system

• 10-inch full-color touch screen (1280×800)

• Siemens S7-1200 PLC

• Parameter storage (≥100 sets)

• Real-time curve display

• Fault self-diagnosis system

• Multi-language interface (Chinese/English/Japanese, etc.)

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 10 Set/Sets Per Month

Certificate: ISO 9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
