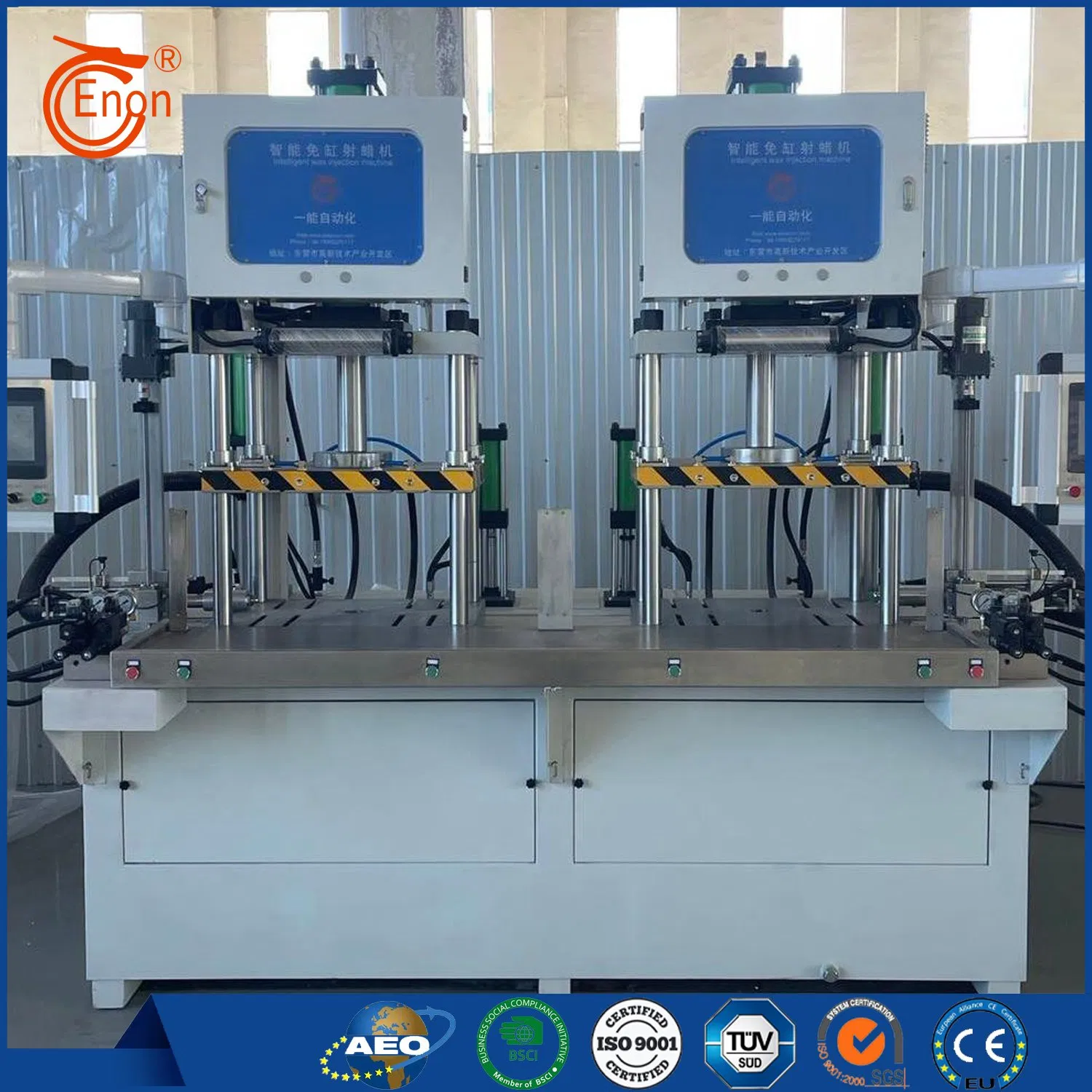

Four Column Wax Injection Machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-SMZ-16LB-Y

$24700- /Piece/Pieces

24700USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-16LB-Y

Brand: Enon

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Explain	Unit	YN-SMZ-16LB-Y
Clamping force (max)	T	16
Mold use space(L×W×H)	mm	520×570×600
Up and down the mold trip	mm	600
Minimum height of the mold	mm	100
hydraulic oil tank	L	150
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

Applications

The 16T dual-station wax injection molding machine is primarily used in the precision casting industry to produce a variety of high-precision, high-quality wax patterns. These wax patterns, through subsequent processes such as shelling, dewaxing, and pouring, can be used to create a variety of metal castings. These are widely used in aerospace, automotive, machining, medical devices, and electronics. For example, in aerospace, it is used to manufacture complex, high-precision components such as aircraft engine blades and turbine disks. In automotive manufacturing, it is used to produce wax patterns for key components such as engine blocks and transmission housings. In the medical device field, it is used to manufacture products requiring extremely high precision and surface quality, such as artificial joints and dental restorations.

Advantages and Value

Improved Production Efficiency: The dual-station design allows the machine to operate two sets of molds simultaneously, significantly shortening production cycles, improving production efficiency, and reducing production costs, making it particularly suitable for large-scale production.

Ensuring Product Quality: Through precise temperature control, wax injection pressure regulation, and a stable molding process, wax patterns with high dimensional accuracy and excellent surface quality can be produced, thereby improving the quality and performance of the final casting and reducing the scrap rate caused by wax pattern defects. Reduced Labor Intensity: Automated operating procedures and advanced control systems reduce the tedious steps and labor intensity of manual operations, improving production stability and consistency while also facilitating standardized production and management.

Enhanced Competitiveness: The advanced 16T dual-station wax injection molding machine improves production capacity and technical expertise, meeting market demand for high-quality castings and enhancing market competitiveness.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
