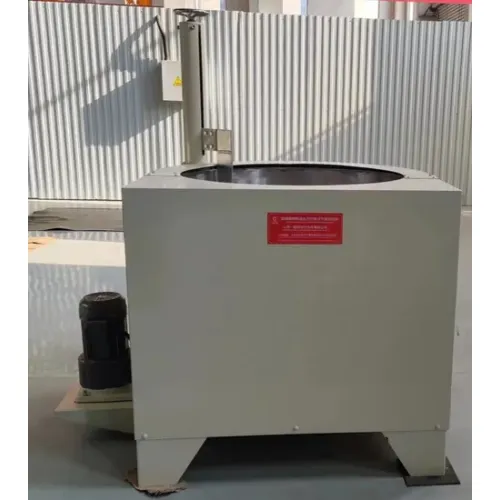

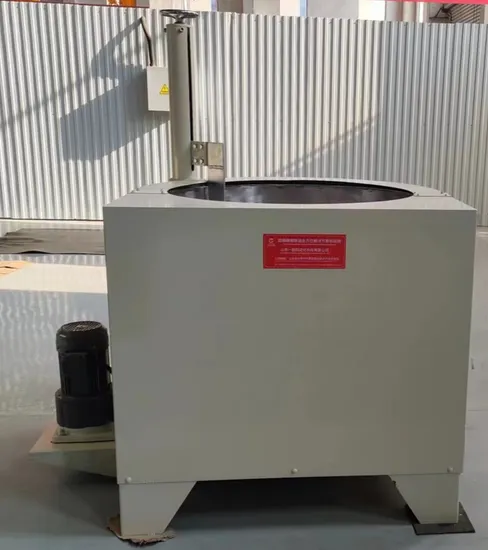

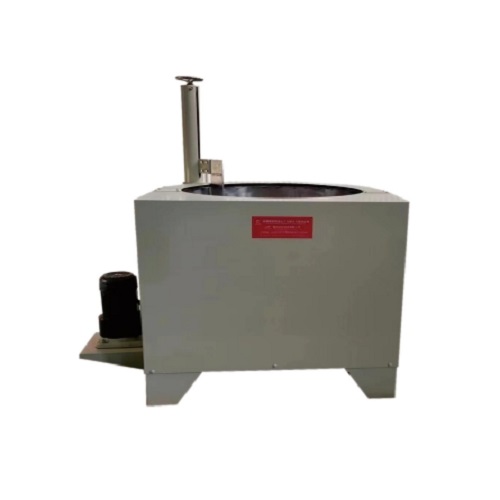

Investment Casting Stainless Steel Shell Slurry Agitator

Investment Casting Stainless Steel Shell Slurry Agitator

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao
Model:	YN-ZZJ-800

$2206- /Piece/Pieces

2206USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-ZZJ-800

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1. Technical parameters

Specifications and models	YN-ZZJ-800	YN-ZZJ-1000
Slurry barrel diameter	Φ800mm	Φ1000mm
Slurry barrel depth	650mm	750mm
Rated load	0.75KW/380V	1.5KW/380V
Slurry barrel speed	28r/min	28r/min

Note: The above models are commonly used, and non-standard models can be customized.
2. Product Description
1. The universal slurry dipping machine adopts a semi-closed guard structure, and the L plate can move up and down to prevent the slurry crutch
from being clamped during a power outage. The transmission system is mounted downward, which is easier to assemble and maintain. The use of
this mechnism lowers the height of the machine body, which reduces the labor intensity for the slurrying operator. All metals in contact with the
pulp throughout the equipment are made of stainless steel.
2. It is equipped with power outage protection and is not afraid of short-term precipitation of slurry. It is suitable for shell making of various precision
castings.
3. It adopts a bearing support structure with needle roller bearings as the main support to ensure smooth rotation under heavy load conditions and
longer service life.
4. It adopts arc cylindrical worm gear reducer with large load-bearing capacity, high efficiency and low temperature.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 10 Set/Sets Per Month

Certificate: ISO 9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
