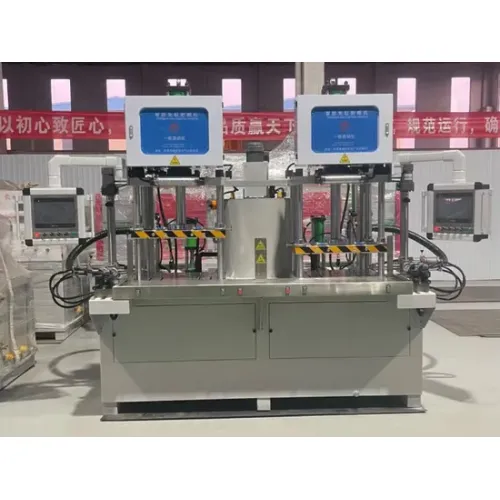

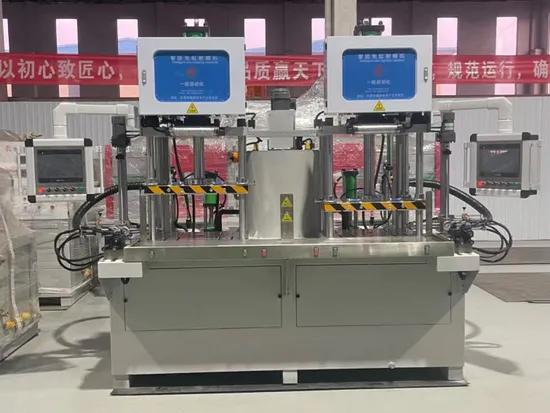

Lost wax casting double-station wax injection machine

Lost wax casting double-station wax injection machine

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
Model:	YN-SMZ-20LB-Y
option:	YN-SMZ-20LB-Y

$30590- /Piece/Pieces

30590USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-20LB-Y

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Explain	Unit	YN-SMZ-20LB-Y
Clamping force (max)	T	20
Mold use space(L×W×H)	mm	500×610×600
Up and down the mold trip	mm	500
Minimum height of the mold	mm	100
hydraulic oil tank	L	150
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	7.5
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

2.Description

1. Importantly, the non-invasive method reduces casting time by 24 hours.

3. The timer can be set as needed.

4. Reliable, reliable, and cost-effective performance.

5. The machine can sense the customer's pressure and flow capacity in a timely manner.

6. The Orange Three-Layer Pipe Inspection System uses water-controlled heating, heating, or cooling to monitor the wax temperature. The temperature can be effectively controlled with a frequency of no more than ±0.5°C (0.5%).

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW
