Single station wax injection machine 20T good quality

Single station wax injection machine 20T good quality

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-DMZ-20LB-Y

$18830- /Piece/Pieces

18830USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DMZ-20LB-Y

Brand: Enon

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Explain	Unit	YN-DMZ-20LB-Y
Clamping force (max)	T	20
Mold use space(L×W×H)	mm	550×610×600
Up and down the mold trip	mm	600
Minimum height of the mold	mm	100
hydraulic oil tank	L	175
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

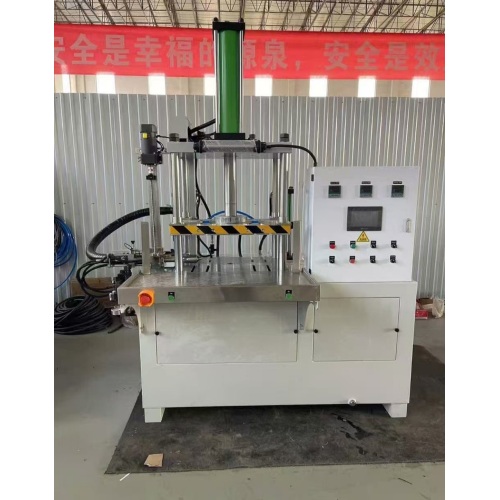

2,Detail image

Taking a typical single-station Wax Injection Machine as an example, its clamping force is typically available in a variety of specifications, such as 16 tons, 20 tons, and 25 tons, allowing for flexible selection based on mold size and production requirements. Wax injection pressure is generally adjustable from 0 to 70 MPa, and the maximum mold space is 400 × 400 × 380 mm (length × width × height), accommodating molds of varying sizes. The nozzle's longitudinal stroke also has corresponding standards, such as H = 200 mm, and the maximum injection volume (Vmax) can reach 8.0 liters. Installed power varies depending on the specific configuration of the machine, but is generally around 15.8 kW (13.8 kW for a dual-tank heater setup), operating at 380 V and 50 Hz. Air source pressure is required to be between 0.4 and 0.8 MPa. The machine's overall dimensions are approximately 3200 mm × 2400 mm × 2400 mm, and the main unit weighs approximately 3.2 tons. These parameters work together to enable the single-station wax injection machine to operate efficiently and stably in actual production, providing reliable production guarantees for precision casting companies.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
