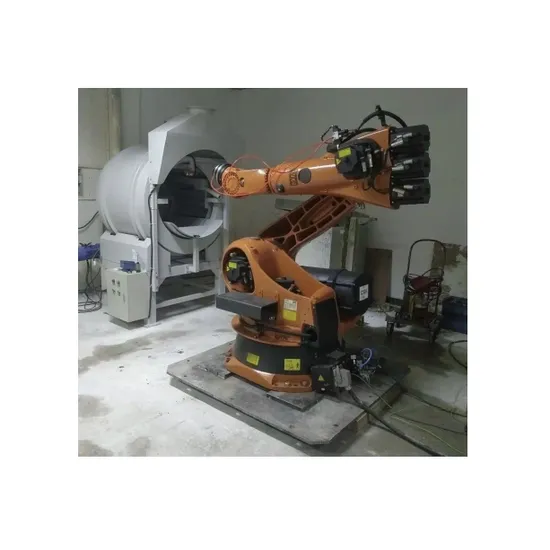

Six-axis casting shell making robot

$47060- /Piece/Pieces

Payment Type:	T/T
Incoterm:	FOB,EXW,CIF
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao

Model:

YN-ZJR-210

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: YN-ZJR-210

Brand: Enon

Certification: ISO 9001:2015

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Wooden box packaging
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

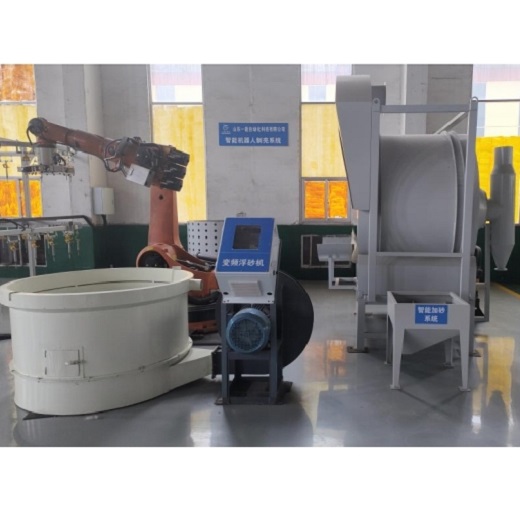

Best Investment Casting Shell Making Equipment Fully Automatic Six-Axis Shell Making Robot1



Product Description

1,Technical parameter

Illustrate	unit	YN-ZJR-210
Robot type		FANUC(R-2000iC/210F)
load capacity	kg	210
The scope of work	m	2.65
Repeatability	mm	0.07
Maximum wrist measurement	NM	1360

2.Benefit description
1. This intelligent system can realize the shell-making robot to automatically grab the entire series of mold shells from the hanging chain, and automatically complete the entire shell-making operation process of slurry dipping, slurry control, sand pouring and return to the hanging chain.
2. The process control instructions can be programmed in advance, and the robot automatically identifies the mold shell status, performs continuous operations according to the pre-programmed program, and performs personalized selection, designation and programmed control through the PLC controller, truly realizing intelligence and automation.
3. With robots as the core of the shell-making process, operators only need to do some auxiliary work. The robot's load capacity far exceeds the manual lifting weight, which can greatly increase the number of product assembly welds for a single string of mold shells, improve work efficiency, and reduce production costs.
4. This intelligent system comes with a dual-circuit design of monitoring, emergency stop and fault protection, as well as a multi-position starting device, making the operation safer, more stable and more reliable.
5. After a process production cycle is completed, the initial state of the mark is automatically rewritten so that the rewritten state of the product is consistent with the state of the product after a process production cycle. 6. Products of the same model from FANUC/KUKA and other brands are optional.
