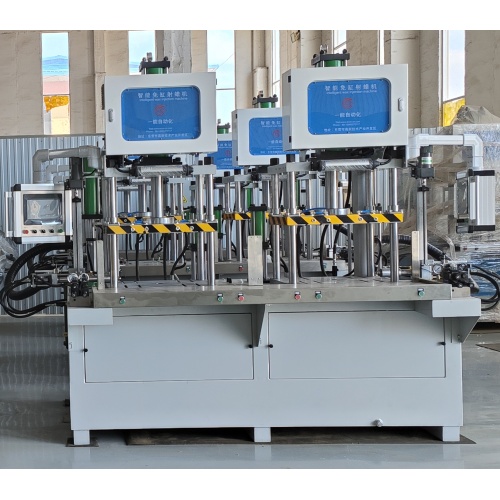

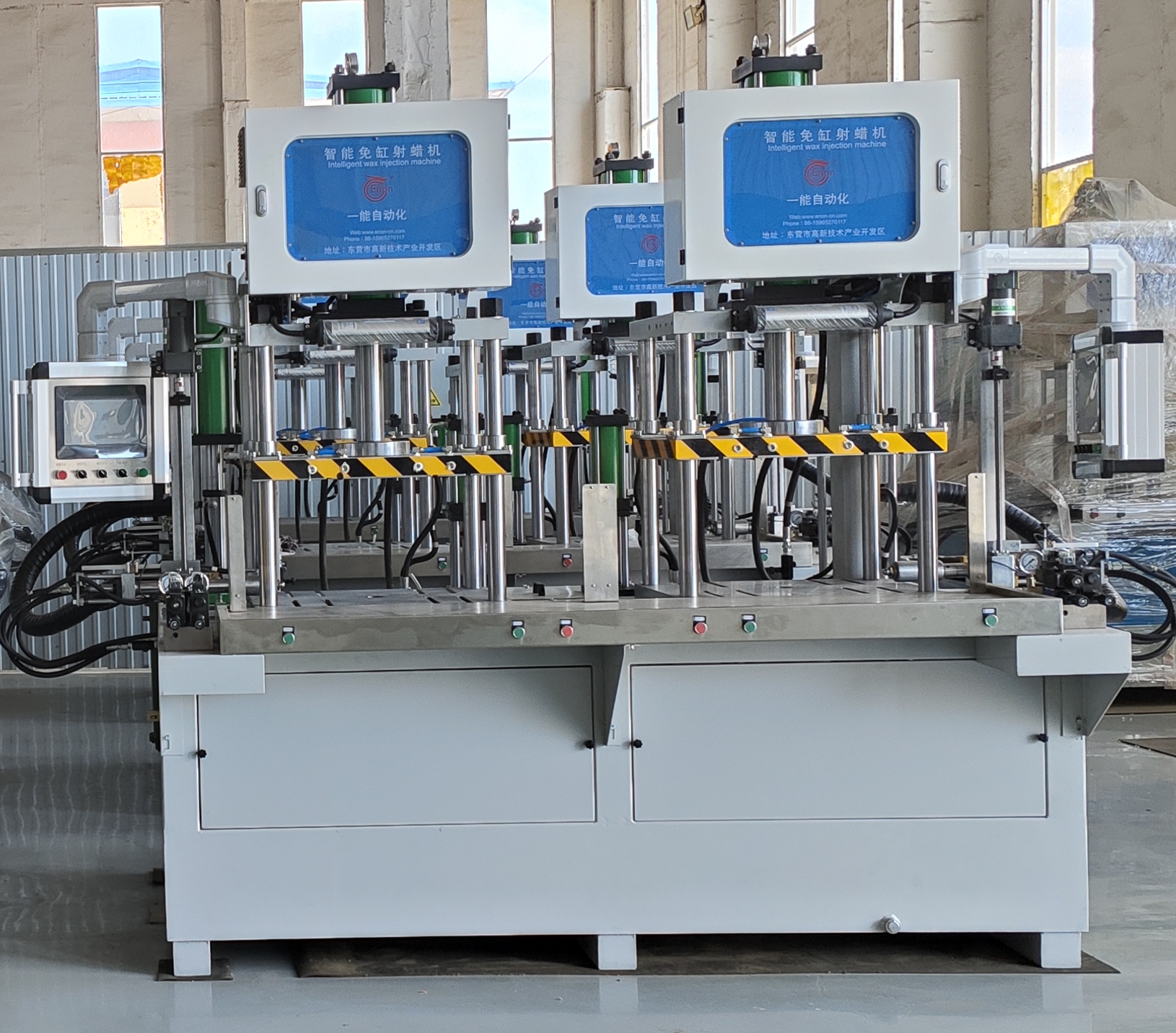

Wax Injection Machine YN-SMZ-16LB-Y

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-SMZ-16LB-Y

$24700- /Piece/Pieces

24700USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-16LB-Y

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Configuration instructions

1.The equipment's two workstations operate independently, each capable of simultaneously alternating between two sets of molds of varying sizes and heights. The process parameters (wax injection time and hold time) for each mold set can be individually configured. This allows operators to flexibly adjust process parameters to meet the requirements of different molds, improving equipment efficiency and production flexibility. For example, while one workstation can produce small wax models, another can produce large ones, fully utilizing equipment resources and increasing production capacity.

2.The equipment also features built-in wax melting and stirring functions to ensure uniform wax paste. The wax melting unit utilizes advanced heating technology to quickly melt solid wax into liquid form, and the stirring mechanism maintains uniform temperature and composition, ensuring high-quality wax injection.

2.Technical parameter

Explain	Unit	YN-SMZ-16LB-Y
Clamping force (max)	T	16
Mold use space(L×W×H)	mm	520×570×600
Up and down the mold trip	mm	600
Minimum height of the mold	mm	100
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Maximum wax injection (wax cylinder)	L	5.4
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
