Model No.: YN-SMZ-10LB-Y
Brand: Enon
Place Of Origin: China
Old And New: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc
Warranty Period: 1 Year
Core Selling Point: Easy To Operate
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Applicable Industry: Manufacturing Plant, Other
| Selling Units: | Piece/Pieces |
| Package Type: | Wooden box packaging |

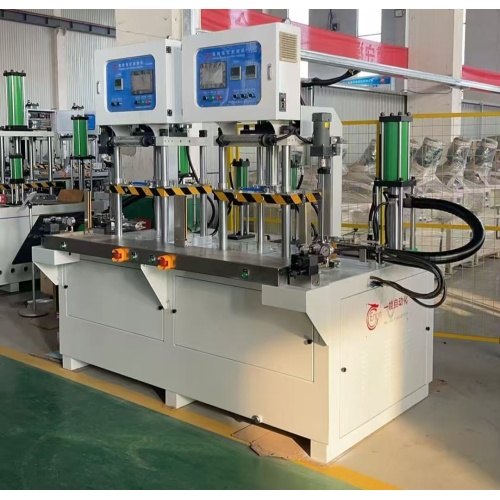

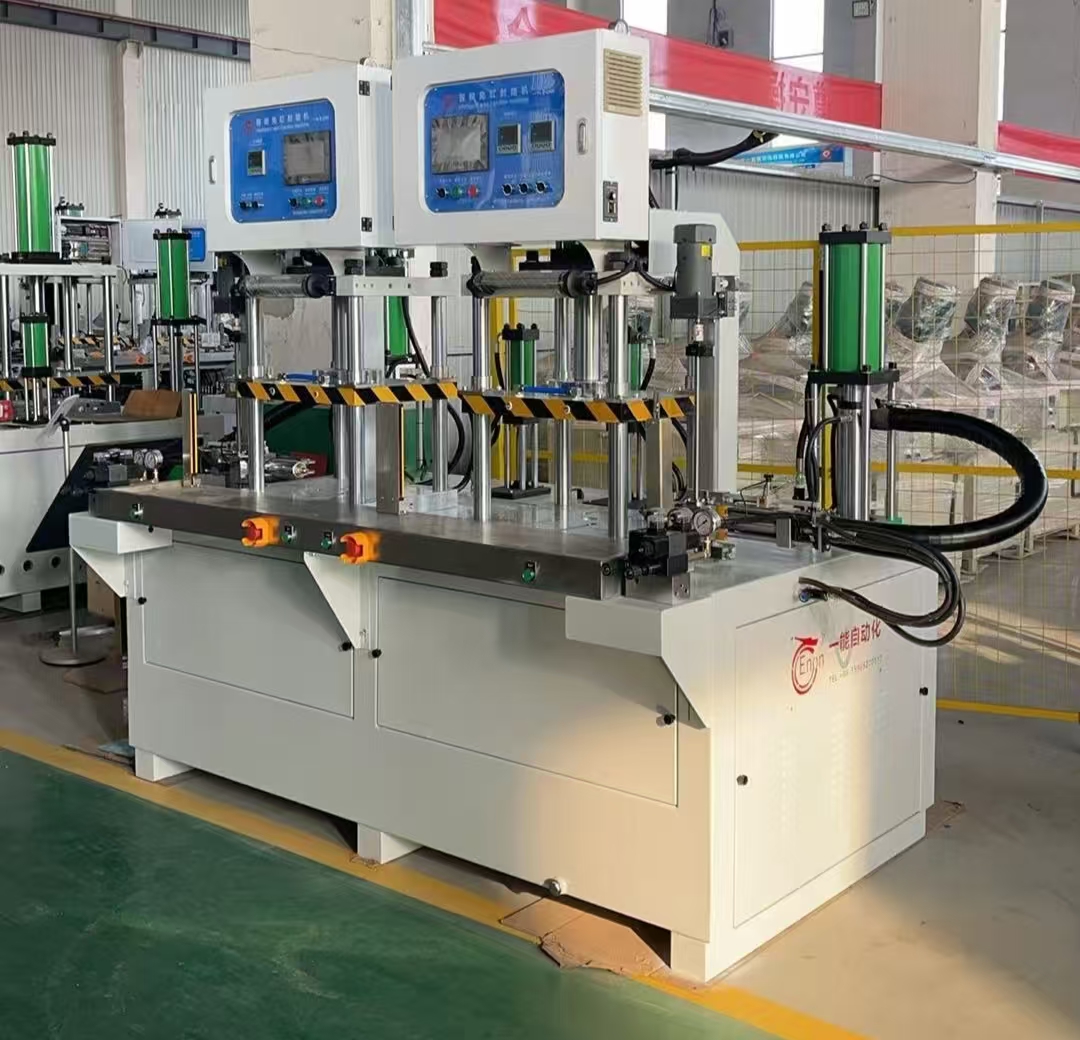

| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Explain | Unit | YN-SMZ-10LB-Y |
| Clamping force (max) | T | 10 |
| Mold use space(L×W×H) | mm | 460×430×500 |
| Up and down the mold trip | mm | 400 |
| hydraulic oil tank | L | 150 |
| PLC+Touch screen | YES/NO | YES |
| The nozzle is electrically powered up and down | YES/NO | YES |
| Mold use form | Can be up and down fixed automatic mode, hand push single mode or double mode | |
| Maximum wax injection (wax cylinder) | L | 3.3 |
| Maximum injection pressure | MPa | 0~10 (Hydraulic variable pressure control ) |
1.Innovative Wax-Free Design: Eliminates the traditional 24-hour dwell stage in an insulated chamber, significantly streamlining precision casting operations and boosting production efficiency.
2..Independent Pressure and Flow Control: Enables separate adjustment of wax flow pressure and features secondary pressurization, substantially reducing pattern shrinkage and deformation for more dimensionally stable castings with superior surface quality.
3..High-Precision Temperature Control: Employs a three-layer wax tube cooler using thermal oil for both heating and cooling, maintaining wax temperature within ±0.5°C and limiting pattern shrinkage to below 0.5%.
4..Intelligent Closed-Loop Control: Automatically monitors and adjusts wax injection temperature, system pressure, and injection flow rate in real-time according to process requirements, ensuring full-process precision and consistency.
5.Multi-Directional Nozzle Adjustment: Allows flexible positioning of the nozzle—up, down, left, right, backward, and forward—for quick adaptation to various mold configurations and simplified operation.
6.Imported Core Components: Utilizes internationally renowned hydraulic and electrical parts, ensuring operational stability, extended service life, and outstanding reliability and cost-effectiveness.
Packaging: Wooden box packaging
Transportation: Ocean,Land
Supply Ability: 120piece/Year
Certificate: ISO 9001:2015
Port: qingdao
Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
