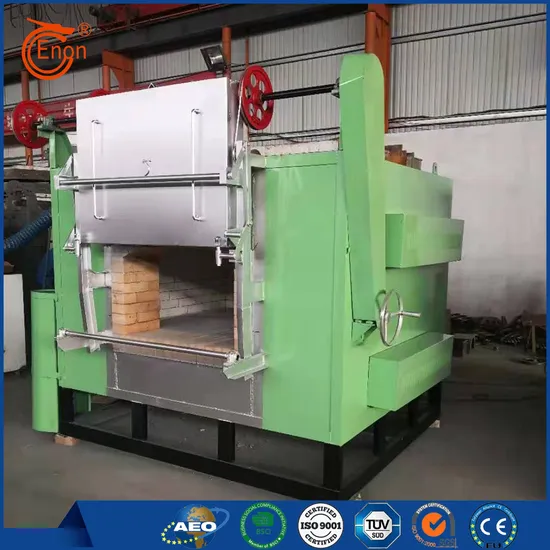

High Temperature Investment Casting Roaster

High Temperature Investment Casting Roaster

Payment Type:	T/T
Incoterm:	FOB,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Field Maintenance And Repair Service, Video Technical Support, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages
2.1 With large capacity and powerful heat treatment capabilities, it is suitable for large workpieces, featuring high efficiency and low operating costs.

2.2 The furnace lining adopts a complete fiber structure, which effectively improves the insulation performance compared to brick-lined furnaces.

2.3 For small and medium-sized furnaces, no foundation installation is required. Integrated tracks can be used, and they can be operated on flat ground.

2.4 Large electric furnaces use multi-zone heating to improve temperature uniformity. Heating elements are installed at the furnace door, the rear wall, and the small cart. High-power electric furnaces are equipped with multiple automatic temperature control cabinets, each for automatic temperature control of the respective heating area.

2.5 The operation of the furnace door and the small cart is fully automated. Each electrical box is equipped with multiple instruments and automatic observers, capable of providing continuous monitoring.

Supply Ability & Additional Information

Packaging: wooden box package

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,EXW
