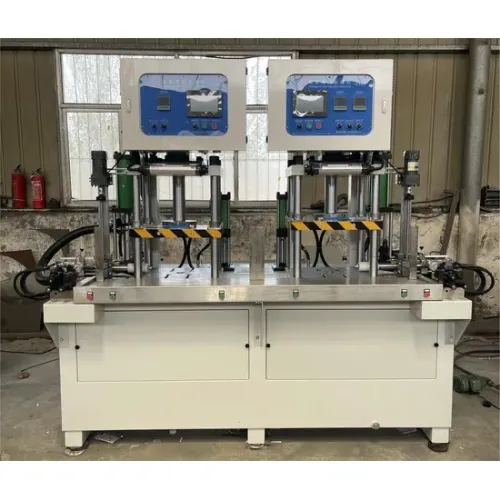

Precision Casting Double Column Wax Injection Machine

Precision Casting Double Column Wax Injection Machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-SMZ-10LB-Y

$21760- /Piece/Pieces

21760USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-10LB-Y

Brand: Enon

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging

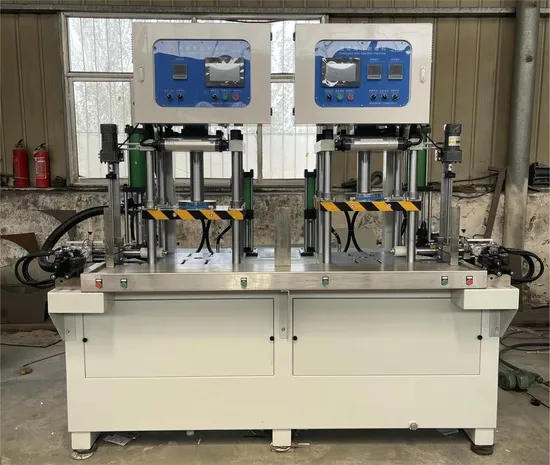

Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Explain	Unit	YN-SMZ-10LB-Y
Clamping force (max)	T	10
Mold use space(L×W×H)	mm	460×430×500
Up and down the mold trip	mm	400
Minimum height of the mold	mm	100
hydraulic oil tank	L	150
PLC+Touch screen	YES/NO	YES

1,Description

1.Elimination of Wax Storage Cylinder: The innovative wax-free system streamlines the precision casting process by eliminating the traditional 24-hour holding period in a wax incubation chamber, significantly reducing production lead time.

2. Precision Temperature Management: A triple-layer wax tube heat exchanger, utilizing thermal oil for both heating and cooling, ensures highly stable and reliable wax temperature control. The system maintains temperature accuracy within ±0.5°C and controls wax shrinkage rate within 0.5%.

3. Multi-Directional Nozzle Adjustment: The injection nozzle features multi-axis adjustability, allowing for precise alignment with the mold through upward, downward, left, right, and backward movements.

4. Independent Pressure and Flow Regulation: Wax pressure and flow are independently controlled. The system supports secondary pressure boosting to effectively counteract wax pattern shrinkage, resulting in superior pattern quality with minimal deformation.

5. Premium Imported Components: Critical hydraulic and electrical systems are equipped with imported components, ensuring exceptional operational stability, reliability, and high cost-effectiveness.

6. Automated Process Control: The machine offers fully automated, real-time closed-loop control of temperature, injection pressure, and flow rate, which can be customized to meet specific customer process requirements.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
