Model No.: YN-SMZ-16LB-Y
Brand: Enon
Place Of Origin: China
Old And New: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc
Warranty Period: 1 Year
Core Selling Point: Easy To Operate
Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other
| Selling Units: | Piece/Pieces |
| Package Type: | Wooden box packaging |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

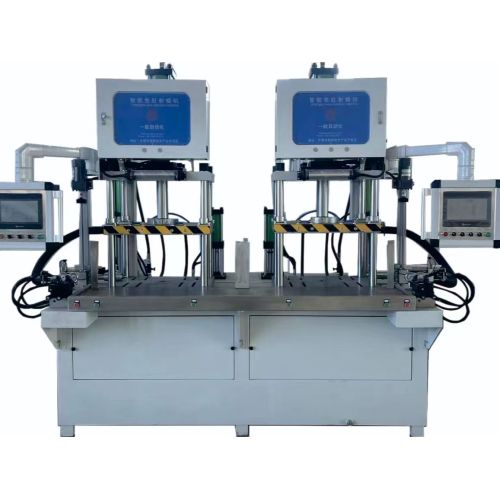

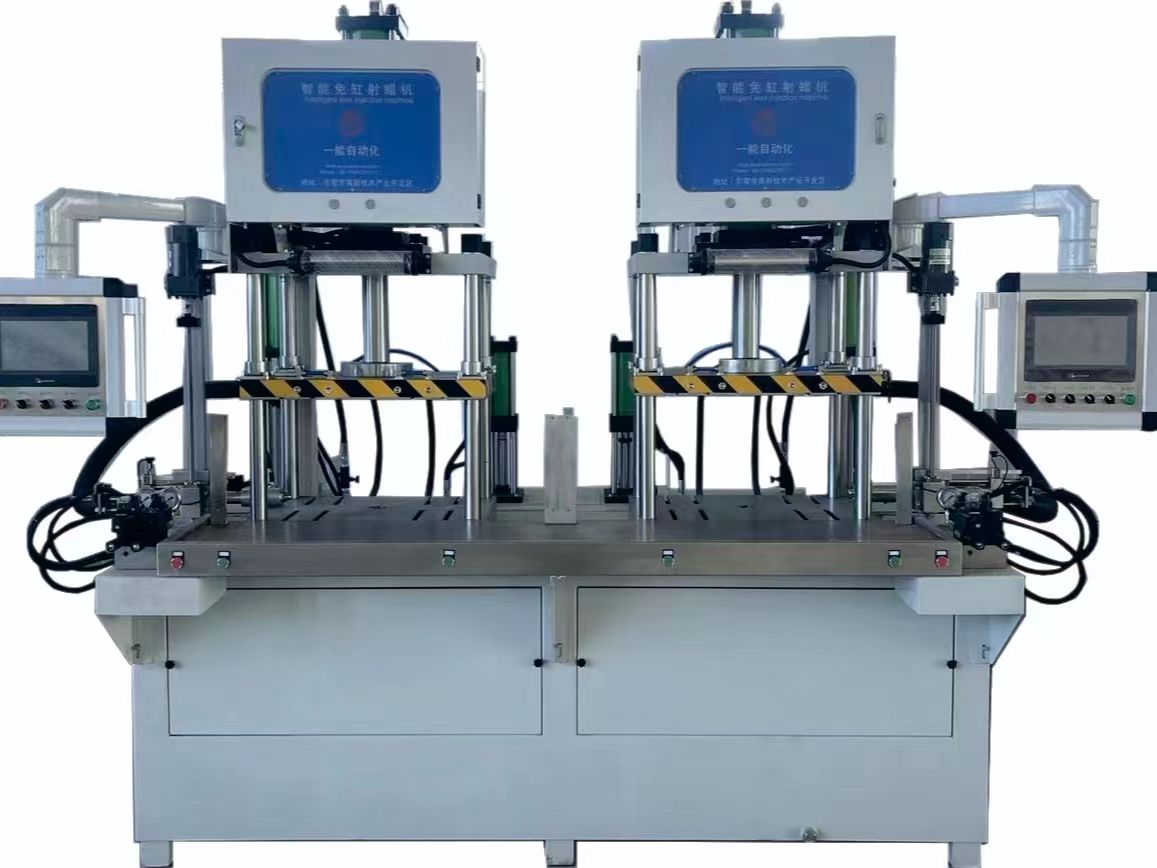

1. Efficient Production: The dual-station design allows the machine to produce two sets of wax patterns simultaneously, significantly improving production efficiency. Compared to single-station wax injection machines, it can produce more wax patterns in the same amount of time, meeting the needs of large-scale production. Furthermore, each station can operate and adjust parameters independently, and different molds can be used interchangeably, further optimizing the production process, reducing equipment idle time, and improving overall production efficiency.
2. Reliable Quality: An advanced control system, precise temperature control, secondary wax injection, and pressure-boosting functions ensure high-quality wax pattern formation. Precise process parameter control effectively prevents defects such as bubbles, shrinkage cavities, and flash in the wax patterns, ensuring dimensional accuracy and surface finish, providing high-quality wax pattern blanks for subsequent investment casting processes and improving the quality of the final castings.
3. Convenient Operation: The combination of a touch screen and Siemens PLC control system makes the machine easy to operate, lowering the technical requirements for operators. A comprehensive parameter memory function allows operators to quickly switch production processes for different products. The automated operation of the top mold system reduces manual intervention and improves the convenience and stability of the production process.
| Explain | Unit | YN-SMZ-16LB-Y |
| Clamping force (max) | T | 16 |
| Mold use space(L×W×H) | mm | 520×570×600 |
| Up and down the mold trip | mm | 600 |
| Minimum height of the mold | mm | 100 |
| PLC+Touch screen | YES/NO | YES |
| Mold use form | Can be up and down fixed automatic mode, hand push single mode or double mode | |
| Paraffin pressure form | Single and multiple segments can be selected | |
| Maximum wax injection (wax cylinder) | L | 3.3 |
Packaging: Wooden box packaging
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 120piece/Year
Certificate: ISO 9001:2015
Port: Q,i,n
Payment Type: T/T
Incoterm: FOB,CIF,EXW
