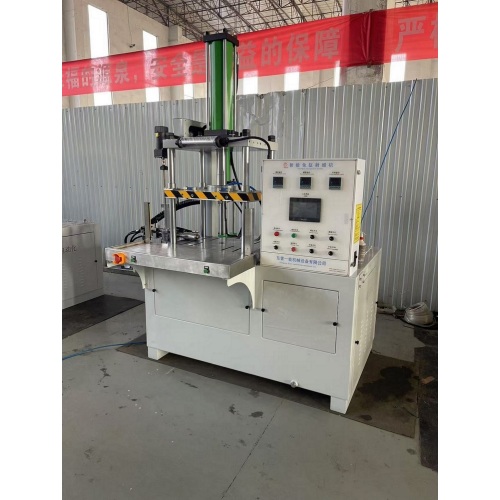

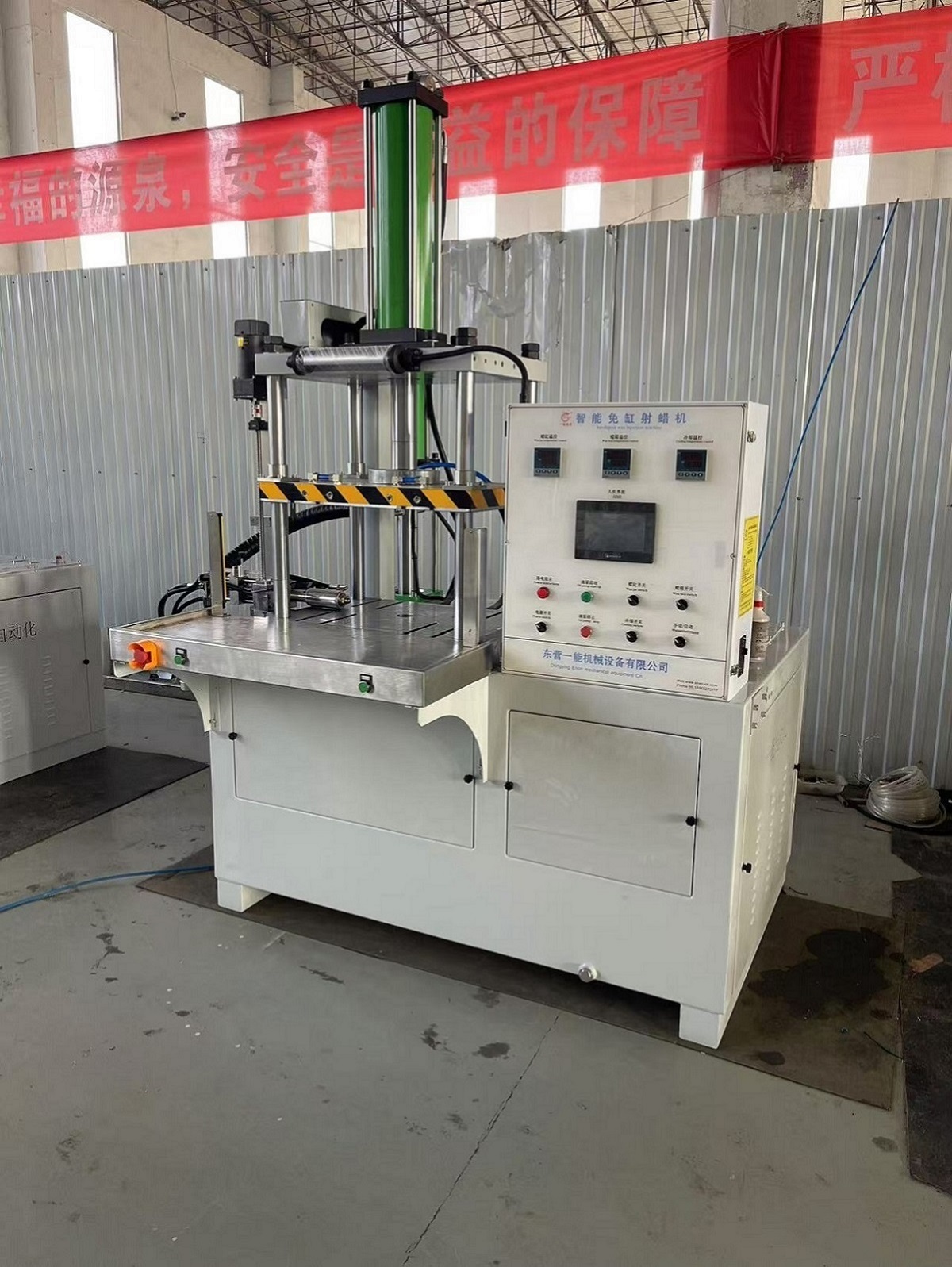

Single-station wax injection machine 20T

Single-station wax injection machine 20T

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-DMZ-20LB-Y

$18830- /Piece/Pieces

18830USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DMZ-20LB-Y

Brand: Enon

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Description

1. This equipment utilizes a wax-free tank design, which shortens the precision casting production process. The wax pattern insulation box eliminates the need for 24-hour static operation.

2. Equipped with a three-layer wax tube cooler, it can be heated or cooled using thermal oil. This provides reliable temperature control for wax models, with a temperature error within ±0.5°C and shrinkage within 0.5%.

3. The nozzle is adjustable, allowing it to follow the mold in vertical, horizontal, and reverse directions.

4. The pressure and flow of the wax flow can be independently controlled, enabling secondary pressurization, effectively preventing shrinkage and improving wax model quality.

5. Imported hydraulic and electrical components offer stable and reliable performance and a high cost-effectiveness.

6. The machine can be customized to achieve automatic and timely control of temperature, pressure, and flow according to specific customer requirements.

2.Technical parameter

Explain	Unit	YN-DMZ-20LB-Y
Clamping force (max)	T	20
Mold use space(L×W×H)	mm	550×610×600
Up and down the mold trip	mm	600
Minimum height of the mold	mm	100
hydraulic oil tank	L	175
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

3.Detail image
Detailed parameters such as automatic pressure and actuation time can be modified on the human-machine interface. A rocker switch and various buttons are provided for operating the hydraulic pump, thermal oil pump, and manual operation. 4.2. Capable of collecting and executing PLC input and output operations; equipped with a contactless intermediate relay, 220V input and DC24V output; a main power leakage protection switch; and a motor AC contactor and thermal overload protector, adjustable according to the motor's current.

4.Configuration instructions
1, electrical components: Chint , PLC programmer for Taiwan Delta series, close switch series components for Omron, Japan.

2,Hydraulic system: the hydraulic valve is Taiwan oil research; the hydraulic motor is Taiwan Group; the hydraulic pump is Taiwan Gree, the circulating motor pump is Taiwan Weiliang; the drum-cylinder seal is Japan NOK; the oil cylinder is Jinan Yuci Branch.

3,The main engine is made of δ 20 hot plate welding, the inner layer of the wax box is 304 stainless steel plate welding, the wax cooling system is made of three pipes, and the wax pipe is welded by pickling.

4. The nozzle diameter of the duplex Wax Injection Machine is Φ 6-9mm. The wax injection speed is about 3-8 mL / s

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
