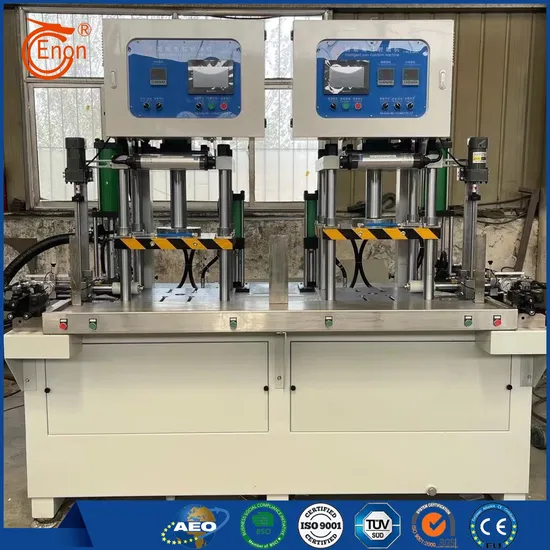

Column type double-station wax injection machine

Column type double-station wax injection machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
Model:	YN-SMZ-10LB-Y
option:	YN-SMZ-10LB-Y

$21760- /Piece/Pieces

21760USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-10LB-Y

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Description

1. Clamping Force: This series of wax injection machines offers two clamping force specifications: 10 tons and 16 tons. The 10-ton clamping force is suitable for the production of small and medium-sized wax models. It ensures a tight fit while precisely controlling the wax injection pressure to ensure high-quality wax models. The 16-ton clamping force is more suitable for the production of larger or complex wax models. The strong clamping force effectively handles the pressure exerted on the mold during high-pressure wax injection, preventing deformation and ensuring the dimensional accuracy and surface quality of the wax model.

2. Injection Pressure: The injection pressure range is 0-6.3MPa. This adjustable injection pressure design allows the machine to adapt to different wax material properties and wax modeling requirements. For wax materials with good fluidity, the injection pressure can be appropriately reduced to avoid over-injection, which can cause mold damage or defects such as flash. For wax materials with poor fluidity or when filling complex mold cavities, the injection pressure can be increased to ensure that the wax fills every corner of the mold quickly and evenly, resulting in a complete wax model.

2.Technical parameter

Explain	Unit	YN-SMZ-10LB-Y
Clamping force (max)	T	10
hydraulic oil tank	L	150
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )
Mold use space(L×W×H)	mm	460×430×500
Up and down the mold trip	mm	400
Minimum height of the mold	mm	100

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
