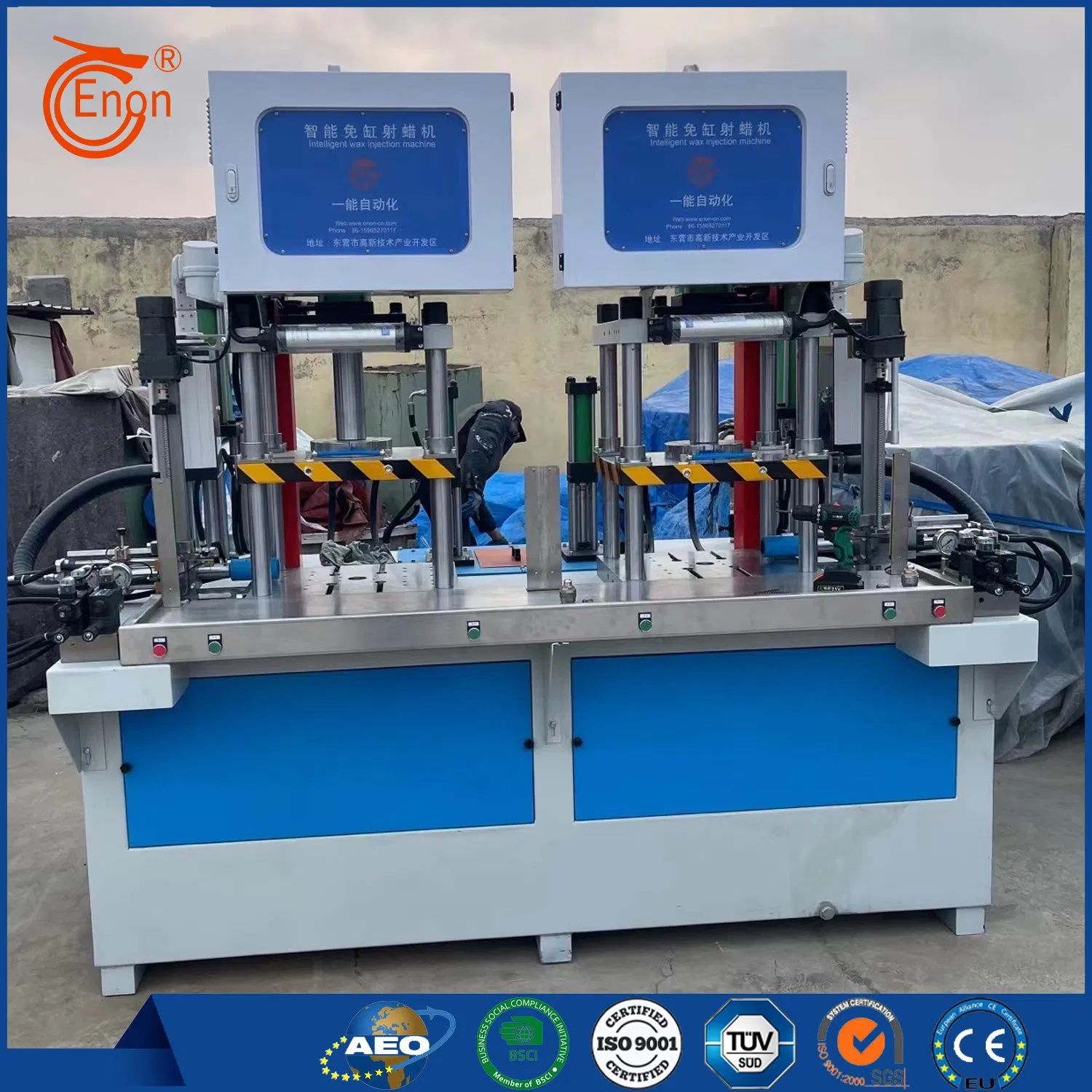

Ten-ton double-station wax injection machine

Ten-ton double-station wax injection machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-SMZ-10LB-Y

$21760- /Piece/Pieces

21760USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-10LB-Y

Brand: Enon

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Explain	Unit	YN-SMZ-10LB-Y
Clamping force (max)	T	10
Mold use space(L×W×H)	mm	460×430×500
Up and down the mold trip	mm	400
Minimum height of the mold	mm	100
hydraulic oil tank	L	150
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

Operation and Maintenance

To ensure the proper operation of the 10T double-station Wax Injection Machine and extend its service life, operators must strictly follow the operating procedures and regularly perform maintenance and servicing. The following are some key points for operation and maintenance:

Operating Procedures:

Before starting the machine, check that all components are functioning properly and that nothing is loose or damaged.

According to the machine's requirements, correctly set parameters such as wax temperature, injection pressure, and injection speed.

During production, closely monitor the machine's operating status to promptly detect and address any abnormalities.

After production, promptly clean the machine and mold to prevent wax residue from remaining inside.

Maintenance:

Regularly inspect the machine's hydraulic system to ensure the hydraulic oil quality and level are normal, and replace the hydraulic oil and filter promptly.

Regularly inspect the machine's electrical system to ensure that electrical wiring is securely connected and in good contact to prevent electrical failures.

Regularly clean the machine's wax tank and wax lines to prevent wax blockage.

Regularly inspect the machine's cooling system to ensure the cooling water quality and level are normal, and replace the cooling water and clean the cooling system promptly. Regularly lubricate and maintain the equipment's mechanical components to ensure proper operation.

The 10T dual-station wax injection molding machine, with its high efficiency, stability, and precision, is an ideal choice for the precision casting industry. It not only improves production efficiency and ensures product quality, but also reduces labor intensity and enhances a company's competitiveness. With the continuous development of the precision casting industry, the 10T dual-station wax injection molding machine is poised to play an even more important role in future production.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
