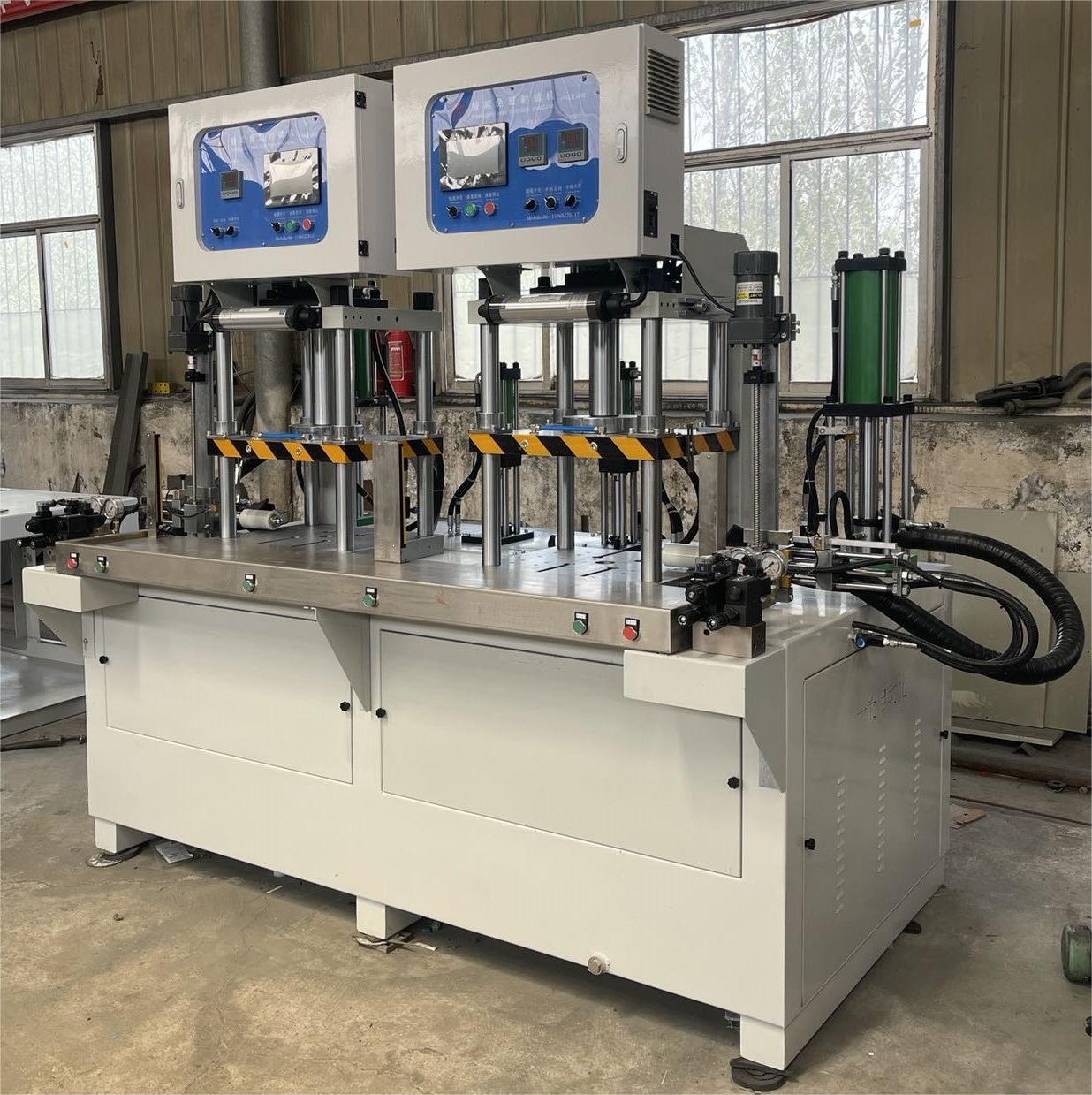

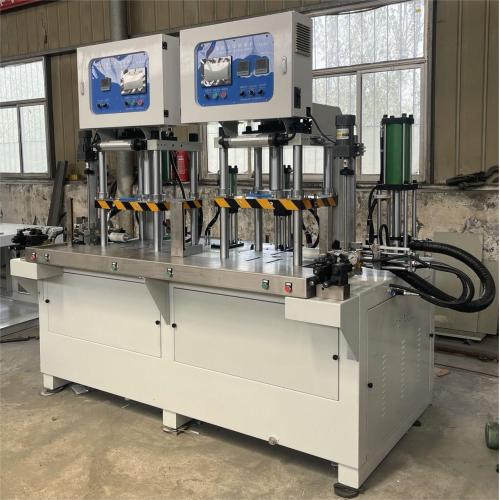

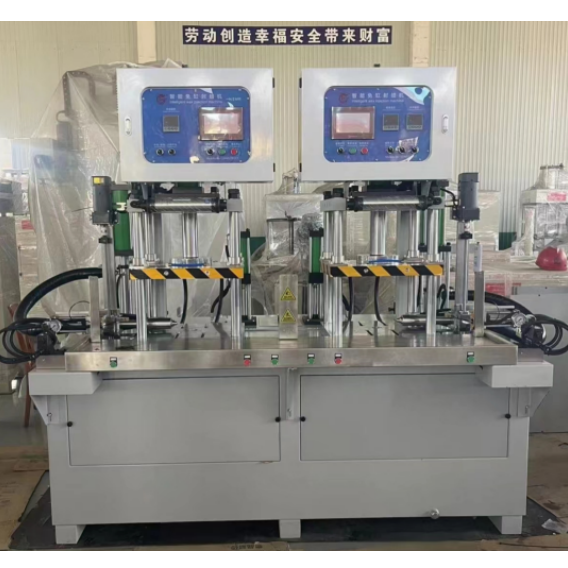

Double Column Wax Injection Machine

Payment Type:	T/T
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-SMZ-10LB-Y

$21760- /Piece/Pieces

21760USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-10LB-Y

Brand: Eono

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Explain	Unit	YN-SMZ-10LB-Y
Clamping force (max)	T	10
Mold use space(L×W×H)	mm	460×430×500
Up and down the mold trip	mm	400
Minimum height of the mold	mm	100
hydraulic oil tank	L	150
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Maximum wax injection (wax cylinder)	L	3.3

2,Description

1. High-Precision Temperature Control and Molding: Utilizing a three-layer tubular cooler, coupled with a thermal oil heating and cooling system, precise wax temperature control is achieved, maintaining a stable temperature differential within ±0.5°C and keeping wax mold shrinkage within 0.5%, effectively ensuring dimensional stability.

2. Flexible Adjustable Nozzle: The nozzle supports flexible adjustment in multiple directions—up and down, left and right, and forward and backward—facilitating quick and precise alignment for diverse mold structures and adapting to diverse wax injection requirements.

3. Independent Pressure and Flow Control: Independent pressure and flow control, including support for secondary pressure boost control, significantly reduces wax mold defects, improves molding consistency, and enhances product yield.

4. Highly Efficient and Energy-Saving Process: A compact and rational process design significantly shortens precision manufacturing cycles, eliminating the need for extended heat preservation and static resting times. A single cycle time is less than 24 minutes, improving production efficiency.

3. System Configuration and Manufacturing Process

1. Hydraulic System Supply: Key hydraulic components are selected from renowned brands, including hydraulic valves from Taiwan Yuken, hydraulic motors from Taiwan Qunli, hydraulic pumps from Taiwan Greely, and circulating motor pumps from Taiwan Yuliang. Cylinder seals are NOK brand from Japan, and the cylinders are manufactured by the Jinnan Yuli Machinery Branch.

2. Main Unit Structure and Treatment: The main unit is constructed of welded δ20 steel plates with heating plates, providing a sturdy structure. The wax tank liner is constructed of 304 stainless steel. The wax cooling system utilizes a three-circuit piping design, with all pipes pickled and then oxidized for corrosion resistance and long service life.

3. Electrical Control System: Low-voltage electrical components are Chint products; the PLC is a Taiwan Delta series, offering stable performance; and sensors such as proximity switches are from Japan's Omron series, offering precise sensing and high reliability.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T
