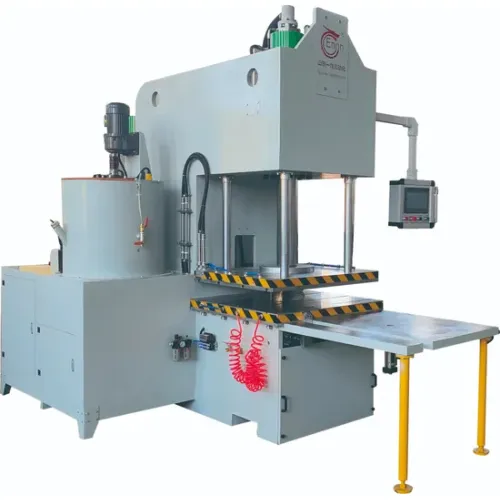

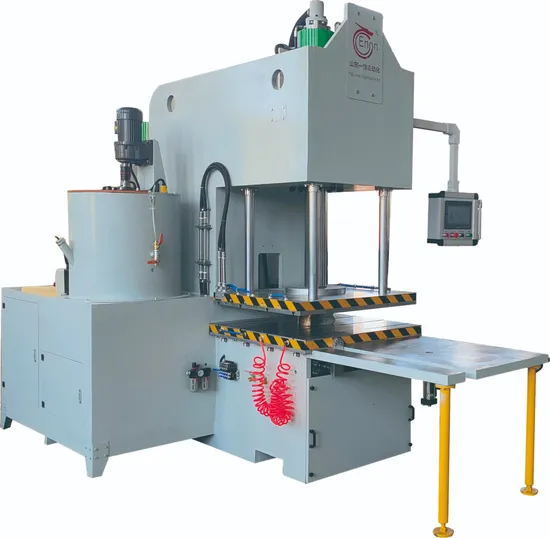

Efficient C Type Wax Molding Injection Equipment

Efficient C Type Wax Molding Injection Equipment

Transportation:	Ocean,Land
Port:	qingdao
option:

$279401-4 Piece/Pieces
$27800≥5 Piece/Pieces

$ 27800 - 27940 / Piece/Pieces

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DMZ-30CB-Y

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Spare Parts, Online Support, Video Technical Support, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Packed in wooden cases
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Main fatures and advantages：

1.1 Precise and Efficient Wax Injection Control

Equipped with an intelligent "stepped wax injection" program, the system allows for 3-5 preset pressure and flow curves. When producing large, complex wax models, the system automatically adjusts injection parameters based on the structural characteristics of the mold cavity. For example, when producing a large gear wax model, the system first rapidly fills the cavity to 80% with low pressure to prevent high-speed wax flow from impacting the mold. High pressure is then applied to compact the details, ensuring the molding accuracy of complex areas such as the gear teeth. Finally, a holding pressure is applied to eliminate shrinkage, ensuring a stable dimensional tolerance within ±0.1% for the wax model, far exceeding the industry standard of ±0.3%.

1.2 Efficient Mold Changeover

Traditional equipment typically requires 2-3 hours to change molds. However, this system, with its "C-frame + quick-alignment pin" mold clamping structure, reduces this time to under 30 minutes. The quick-alignment pin design enables quick and precise mold placement, eliminating the need for tedious calibration. This significantly improves the efficiency of changing between multiple large wax models and enhances the company's ability to respond to diverse market demands.

2.Product Description:

Explain	Unit	YN-DMZ-30CB-Y
Clamping force (max)	T	30
hydraulic oil tank	L	150
PLC+Touch screen	YES/NO	YES
Maximum wax injection (wax cylinder)	L	10
Maximum injection pressure	MPa	0~15 (Hydraulic variable pressure control )
Mold use space(L×W×H)	mm	700×800×600
Up and down the mold trip	mm	500
Minimum height of the mold	mm	100

Note: The lower workbench of this Wax Injection Machine can be moved

Supply Ability & Additional Information

Packaging: Packed in wooden cases

Transportation: Ocean,Land

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: qingdao
