Model No.: YN-SMZ-10LB-Y
Brand: Enon
Place Of Origin: China
Old And New: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc
Warranty Period: 1 Year
Core Selling Point: Easy To Operate
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Applicable Industry: Manufacturing Plant, Other
| Selling Units: | Piece/Pieces |
| Package Type: | Wooden box packaging |

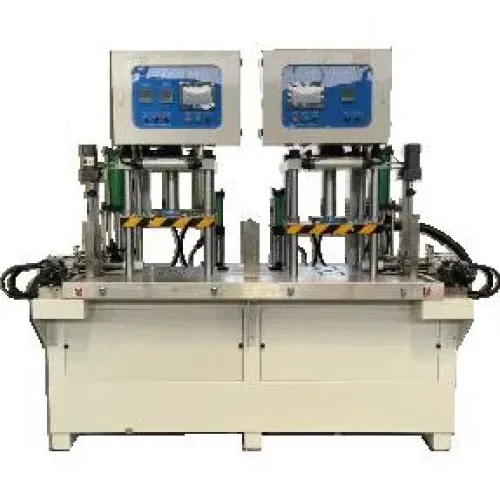

| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Explain | Unit | YN-SMZ-10LB-Y |
| Clamping force (max) | T | 10 |
| Mold use space(L×W×H) | mm | 460×430×500 |
| Up and down the mold trip | mm | 400 |
| Minimum height of the mold | mm | 100 |
| hydraulic oil tank | L | 150 |
| PLC+Touch screen | YES/NO | YES |
| The nozzle is electrically powered up and down | YES/NO | YES |
| Mold use form | Can be up and down fixed automatic mode, hand push single mode or double mode | |
| Paraffin pressure form | Single and multiple segments can be selected | |
| Maximum wax injection (wax cylinder) | L | 3.3 |
| Maximum injection pressure | MPa | 0~10 (Hydraulic variable pressure control ) |
1.The machine supports automated time-based control of temperature, pressure, and flow according to customer requirements.
2.A wax-free cylinder design is adopted, which simplifies the production process for precision casting and eliminates the need for a 24-hour holding period in a wax incubator.
3.Independent control of wax flow pressure and flow rate allows for secondary pressurization, effectively preventing wax pattern shrinkage and ensuring higher-quality wax molds.
4.The three-layer wax tube cooler uses thermal oil for both heating and cooling, enabling precise wax temperature control with high reliability. Temperature deviation is maintained within ±0.5°C, and shrinkage rate is controlled within 0.5%.
5.The nozzle position is adjustable and can be aligned with the mold in upward, downward, left, right, and backward directions.
6.Imported hydraulic and electrical components are used to ensure stable and reliable operation with high cost-effectiveness.
Packaging: Wooden box packaging
Transportation: Ocean,Land
Supply Ability: 120piece/Year
Certificate: ISO 9001:2015
Port: qingdao
Payment Type: T/T,L/C
Incoterm: FOB,EXW,CIF
