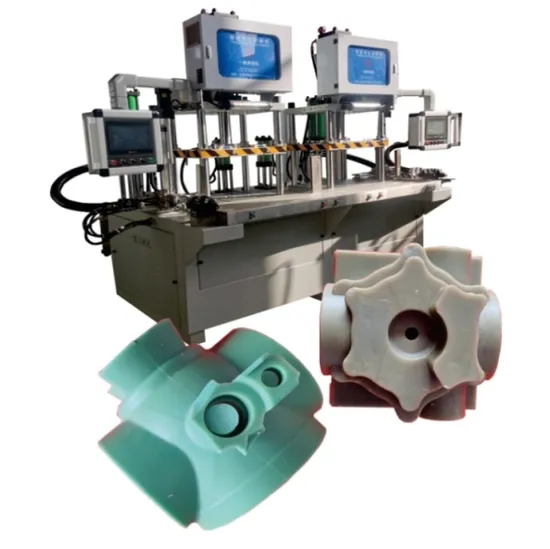

High Efficiency Double Column Wax Injection Machine

High Efficiency Double Column Wax Injection Machine

Payment Type:	T/T
Incoterm:	FOB,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
option:	YN-SMZ-10LB-Y

$21765- /Piece/Pieces

21765USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-SMZ-10LB-Y

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	woodenbox
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Explain	Unit	YN-SMZ-10LB-Y
Clamping force (max)	T	10
Mold use space(L×W×H)	mm	460×430×500
Up and down the mold trip	mm	400
Minimum height of the mold	mm	100
hydraulic oil tank	L	150
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

2.Configuration instructions

1. electrical components: Chint , PLC programmer for Taiwan Delta series, close switch series components for Omron, Japan.

2.Hydraulic system: the hydraulic valve is Taiwan oil research; the hydraulic motor is Taiwan Group; the hydraulic pump is Taiwan Gree, the circulating motor pump is Taiwan Weiliang; the drum-cylinder seal is Japan NOK; the oil cylinder is Jinan Yuci Branch.

3,The main engine is made of δ 20 hot plate welding, the inner layer of the wax box is 304 stainless steel plate welding, the wax cooling system is made of three pipes, and the wax pipe is welded by pickling.

4. The nozzle diameter of the duplex Wax Injection Machine is Φ 6-9mm. The wax injection speed is about 3-8 mL / s

Supply Ability & Additional Information

Packaging: woodenbox

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,EXW
