Single-station investment casting wax injection machine

Single-station investment casting wax injection machine

Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao
option:	YN-DMZ-16LB-Y

$15880- /Piece/Pieces

15880USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DMZ-16LB-Y

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Description

1. Technical parameters

Specifications and models	YN-DMZ-16LB-Y	YN-DMZ-20LB-Y	YN-DMZ-25LB-Y
Mold clamping force	16T	20T	25T
Mold usage space (Depth×Width ×Height)	520×570×600mm	550×610×600mm	650650600
Pressure plate form	Four-column guide	Four-column guide	Four-column guide
Mold clamping stroke (A)	500mm	500mm	700mm
Maximum opening distance (B)	600mm	600mm	600mm
Minimum opening distance (C)	100mm	100mm	100mm
Pneumatic core pulling	4 groups start core pulling	4 groups start core pulling	4 groups start core pulling
Maximum amount of wax injected in one time (wax cylinder)	5L	5L	7.5L

2. Product Description

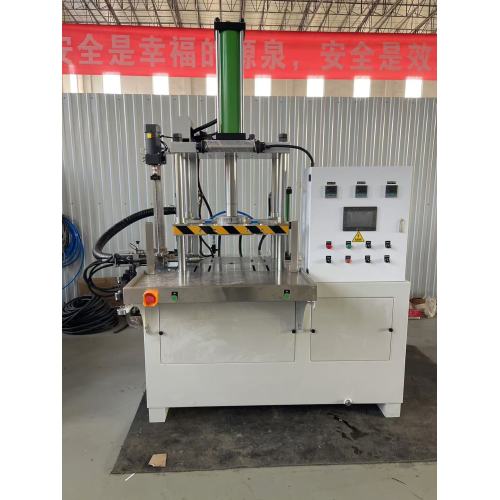

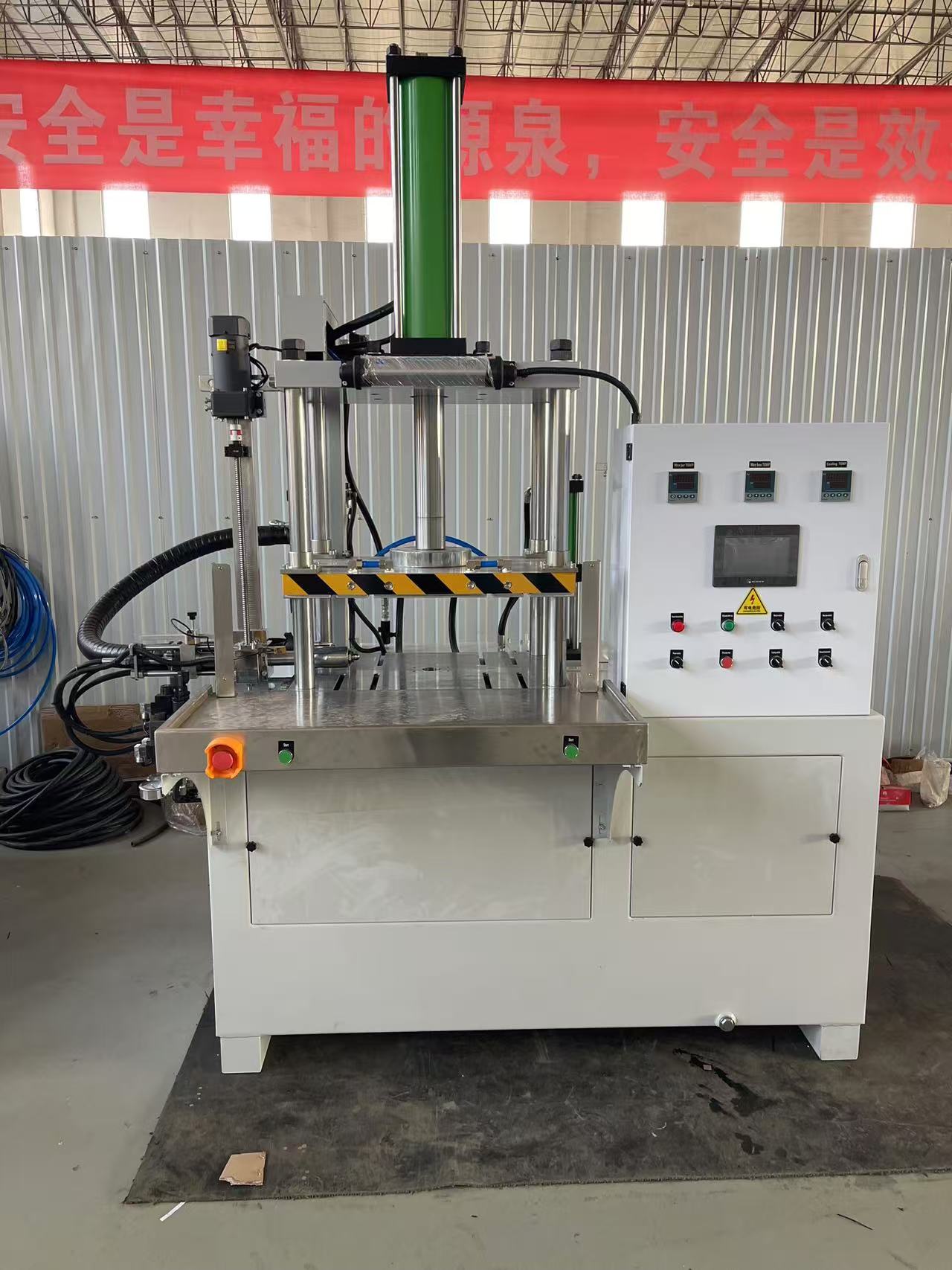

1. This Wax Injection Machine is a four-column vertical die plate machine design with a single station. It adopts hydraulic mold closing and thermal oil heating as the heat preservation source, making the entire working system relatively stable, safe and reliable:
2. Operation method: manual start to prevent accidental hand injuries, and at the same time, the feet are safely lighted. After touching the fence, the mold closing action stops to protect against pinching injuries;
3. The hydraulic system is controlled by a Y-shaped motor to output flow and pressure, which can be adjusted manually;
4. Equipped with an ejection pin function, the mold can be designed to automatically eject, making it convenient and quick to take out the wax mold;
5. The wax injection pressure adjustment is divided into two stages of pressure control and manual adjustment;
6. The advancement and retreat of the nozzle is controlled by the hydraulic system, and the up and down of the nozzle is driven by a motor;
7. The wax storage tank is equipped with a temperature overload protection device for double protection;
8. The mantis storage barrel is equipped with an automatic liquid level device. The wax melter can automatically supply wax. When the wax level reaches the upper limit, the wax supply will automatically stop. There are two operating modes: automatic wax replenishment and manual wax replenishment;
9. Temperature control area: 1 wax storage cylinder, 1 cooling cylinder for the left and right stations, 1 wax extrusion cylinder and injection nozzle for the left and right stations, a total of 5 temperature zone controls, the storage temperature is 70-90°C. The temperature of the cooling cylinder at the left and right stations is 55-58°C, and the temperature of the wax extrusion cylinder and nozzle at the left and right stations is 55-60°C;
10. This intelligent wax shooting machine uses a 10-inch full-color LCD touch screen and a PLC Siemens control system. All parameter settings are completed on the screen (including temperature, time, core pulling and inserting movements, etc.). The human-machine interface is simple and elegant, and the operation is easy and convenient.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120Set/Sets Per Month

Certificate: ISO 9001:2015

Port: qingdao
