Large-tonnage wax injection machine for precision casting

Large-tonnage wax injection machine for precision casting

Min. Order:	1 Piece/Pieces
option:	YN-DMZ-50CB-YK

$450000- /Piece/Pieces

450000USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DMZ-50CB-YK

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Explain	Unit	YN-DMZ-50CB-YK
Clamping force (max)	T	50
Mold use space(L×W×H)	mm	1200(W)X760(D)X600(H)
Up and down the mold trip	mm	500
Minimum height of the mold	mm	100
hydraulic oil tank	L	180
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	10
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

2,Configuration instructions

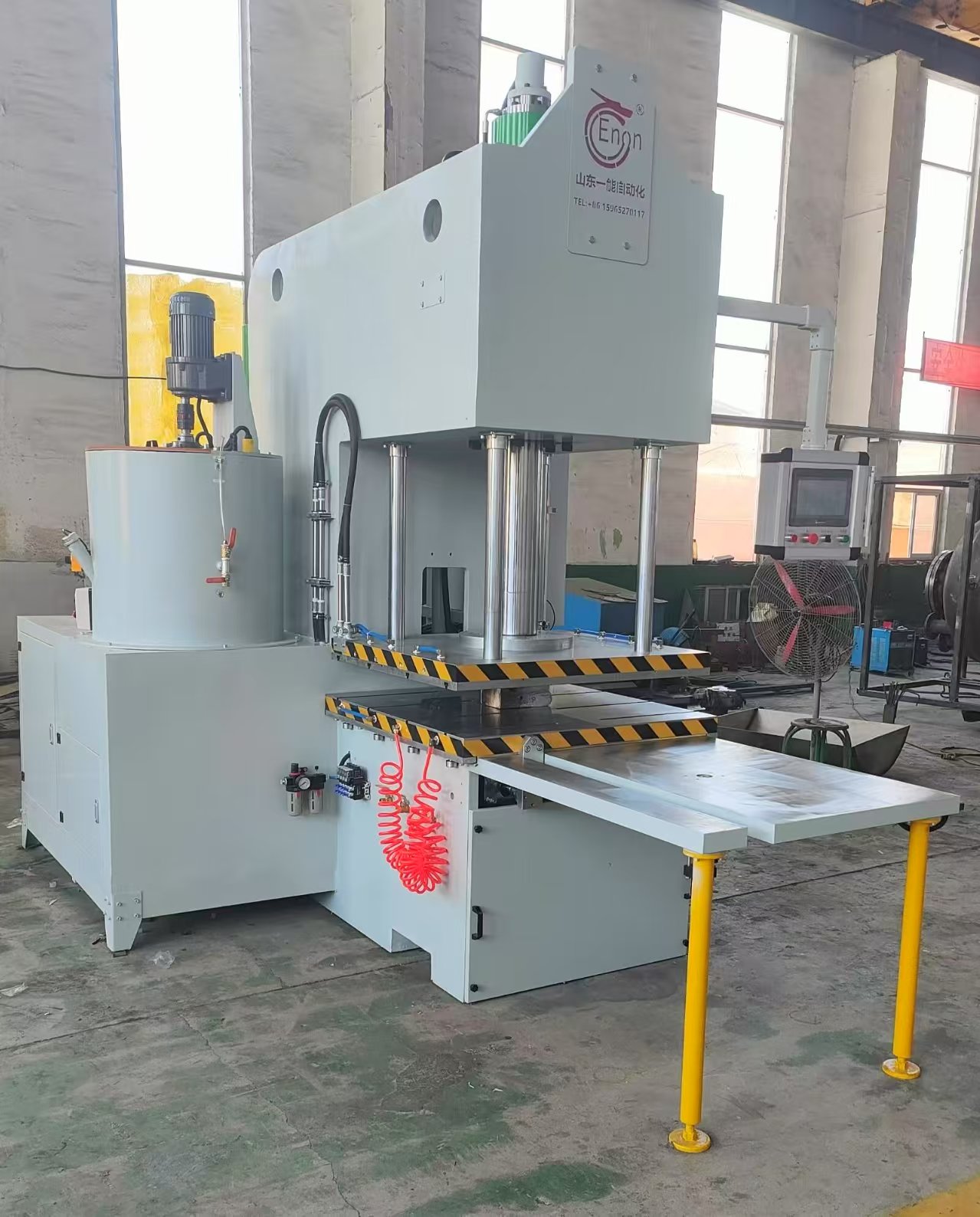

1. This Wax Injection Machine is a C-type vertical die plate machine design with a single station integrated into one. It injects wax under multi-stage pressure. It uses hydraulic mold clamping and thermal oil heating as the heat preservation source to make the entire working system more stable. , safe and reliable;
2. The hydraulic system is controlled by a servo motor to output flow and pressure and parameter control;
3. The wax storage tank has the functions of stirring and making paste, automatic material suction and rapid wax melting, and a temperature overload protection device for double protection;
4.This intelligent wax injection machine has a data saving function, which can be directly recalled when using it.
5.This intelligent wax injection machine uses a 10-inch full-color LCD touch screen and adopts PLC Delta series control system. All parameter settings are completed on the screen (including temperature, time, pressure, core pulling and inserting movements, etc.), and the machine All statuses are monitored in real time, the human-machine interface is simple and elegant, and the operation is simple and convenient.

Supply Ability & Additional Information

Supply Ability: 2 Set/Sets Per Month
