Model No.: YN-XPL-1.3*1.1
Brand: Enon
Place Of Origin: China
Old And New: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc
Warranty Period: 1 Year
Core Selling Point: Easy To Operate
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Applicable Industry: Manufacturing Plant
| Selling Units: | Piece/Pieces |
| Package Type: | Wooden box packaging |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

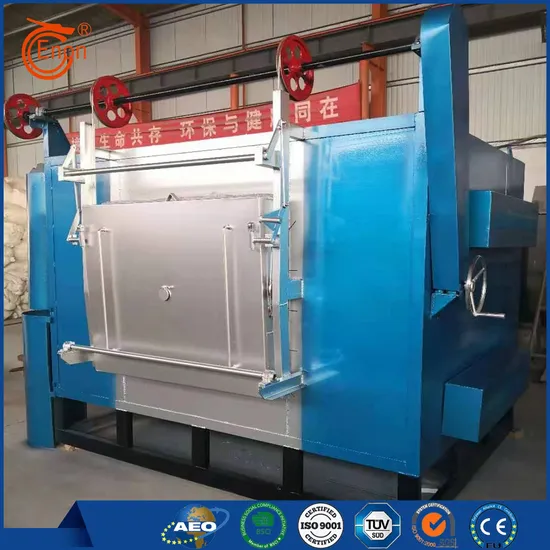

1,Technical parameter | Product name | The high standard electric box roasting furnace | |
| Model | unit | YN-XPL-1.3*1.1 |
| Active furnace space | mm | (1300*1100*700) |
| Throat size | mm | (580*580) |
| Rated working temperature | ºC | ≤1200 |
| Installed power | KW | 150-180 |
| The use of voltage | 380V | |
Note: Equipment specifications and models can be fully customized to meet specific customer requirements.
2. Key Advantages
2.1 Offers substantial loading capacity and excels in heat-treating large workpieces, delivering high efficiency with reduced operational costs.
2.2 Features an all-fiber lining system, providing superior insulation compared to traditional brick chambers, significantly enhancing thermal retention.
2.3 For small and medium-sized units, no foundation installation is required. Integrated rail design allows immediate operation on flat surfaces.
2.4 Larger models employ multi-zone heating with heating elements strategically placed on the door, rear wall, and bogie to ensure exceptional temperature uniformity. High-power versions include multiple automated temperature control cabinets for independent zone management.
2.5 Furnace door and bogie operations are fully automated. Each electrical cabinet is equipped with digital instruments and an automatic monitoring system for precise control and observation.
Packaging: Wooden box packaging
Transportation: Ocean,Land
Supply Ability: 120piece/Year
Certificate: ISO9001：2015
Port: qingdao
Payment Type: T/T
Incoterm: FOB,EXW,CIF
