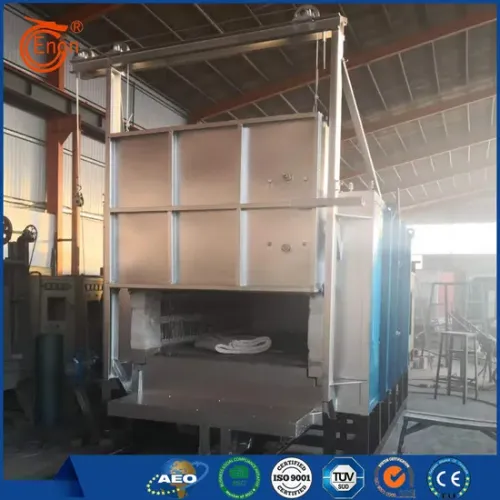

Investment Casting Equipment Double Door Roasting Furnace

Investment Casting Equipment Double Door Roasting Furnace

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao,Shandong,China
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages

The temperature control system begins with temperature acquisition, accomplished through multiple sets of high-precision thermocouples. Thermocouples operate based on the Seebeck effect and consist of two metal wires of different materials forming a closed circuit. When a temperature difference exists between the measuring terminal inside the furnace and the reference terminal at a relatively low temperature (such as the terminal outside the furnace), a thermoelectric potential (EMF) is generated in the circuit. The magnitude of this potential is proportional to the temperature difference. For example, a K-type thermocouple (nickel-chromium-nickel-silicon thermocouple) exhibits excellent linearity and stability in its thermoelectric potential-temperature characteristic over the common roasting temperature range of 0-1300°C, enabling precise sensing of furnace temperature changes with an accuracy of ±1°C.

In a trolley-type Gas Roasting Furnace, thermocouples are not arranged in a single location; rather, 8-12 thermocouples are installed at various locations within the furnace (such as the furnace roof, walls, furnace bottom, and various locations on the trolley) to comprehensively capture the complex temperature distribution within the furnace. Because of factors such as differences in gas combustion zones and airflow circulation within the furnace, temperatures can vary slightly from one area to another. Multi-point temperature measurement prevents unnoticed local temperature deviations. For example, the ends of the furnace, far from the burner, can easily be lower in temperature than the center. Thermocouples can detect this temperature difference in real time, providing comprehensive data for subsequent precise temperature control.

Supply Ability & Additional Information

Packaging: wooden box

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao,Shandong,China

Payment Type: T/T

Incoterm: FOB,CIF,EXW
