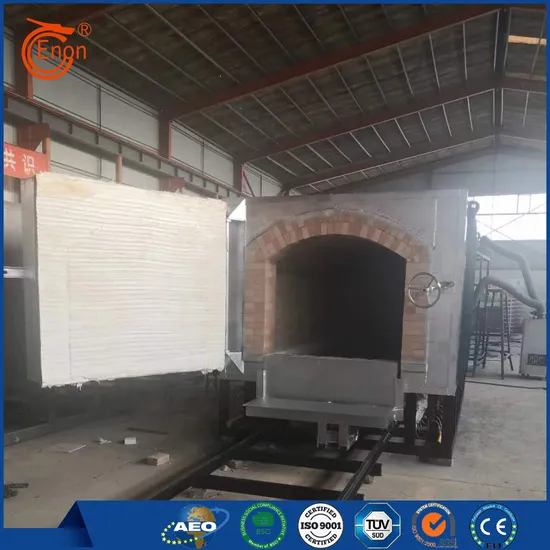

High Quality Investment Casting Equipment Roasting Furnace

High Quality Investment Casting Equipment Roasting Furnace

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao,Shandong,China
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages

The equipment's energy savings don't rely solely on thick insulation; rather, they rely on the synergy of active thermal control and a low-energy structure. The combustion system's dynamic adaptive technology ensures on-demand gas supply. The burner's built-in oxygen sensor monitors the flue gas oxygen content (indicating combustion completeness) in real time, automatically adjusting the air damper opening (air supply) and the gas valve opening. For example, when the furnace temperature approaches the target, the gas flow rate is automatically reduced (from 200kW at full load to 50kW), avoiding "overheating waste." Traditional burners, on the other hand, typically use open-loop control, supplying a fixed flow rate regardless of whether the furnace temperature meets the target, resulting in a gas waste rate of 15%-20%.

Additionally, the low heat storage advantage of lightweight refractory materials reduces "wasted energy." The furnace body utilizes polycrystalline mullite ceramic fiber modules. Compared to traditional heavy refractory bricks, its bulk density is only 0.2-0.3g/cm³, and its heat storage capacity is reduced by 80%. When the equipment heats up, it does not consume a large amount of heat to heat the furnace lining itself, and when cooling, the furnace lining will not cause sudden heating of the formwork due to "excess waste heat" causing sudden heating of the mold shell. The furnace bottom uses low-cement refractory castable (cement content <15%), which takes into account both strength and thermal insulation. The overall heat loss is reduced by 30% compared to traditional furnace bodies, indirectly reducing gas consumption.

Supply Ability & Additional Information

Packaging: wooden box

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao,Shandong,China

Payment Type: T/T

Incoterm: FOB,CIF,EXW
