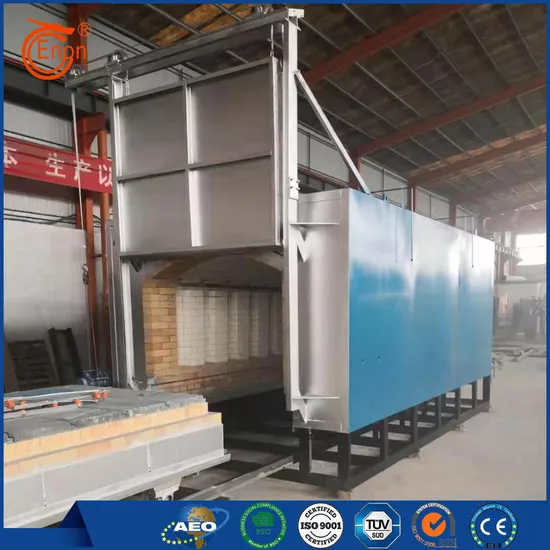

Electric Roasting Furnace Investment Casting Equipment

Electric Roasting Furnace Investment Casting Equipment

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages

Trolley-type energy-saving gas roasting furnaces utilize a more advanced and precise operating principle. High-performance burners precisely control the gas-air mixture ratio, ensuring complete combustion and generating stable, efficient heat. These burners are typically equipped with advanced ignition and flame monitoring systems to ensure safe and reliable combustion.

For temperature control, these furnaces utilize advanced PID intelligent temperature control algorithms and multiple sets of high-precision thermocouples for real-time monitoring of the furnace temperature. These thermocouples are located at various locations within the furnace, enabling comprehensive and accurate temperature data to be collected and transmitted to the control system. The control system analyzes and processes this data based on a pre-set roasting process profile. By adjusting the burner's gas flow rate and air supply, the control system precisely controls the furnace temperature, significantly improving temperature uniformity. Temperature deviations can be controlled to within ±3°C, and even ±2°C on some high-quality equipment.

Furthermore, these trolley-type energy-saving gas roasting furnaces feature a sophisticated air circulation system. Through the rational design of the furnace's air ducts and diversion devices, the high-temperature flue gas forms a uniform airflow circulation within the furnace, ensuring that all parts of the mold shell are evenly heated, further improving the roasting quality. During the cooling stage, the equipment can adopt natural cooling or auxiliary cooling methods as needed to precisely control the cooling rate and prevent defects such as cracks in the mold shell caused by rapid temperature changes.

Supply Ability & Additional Information

Packaging: wooden box

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
