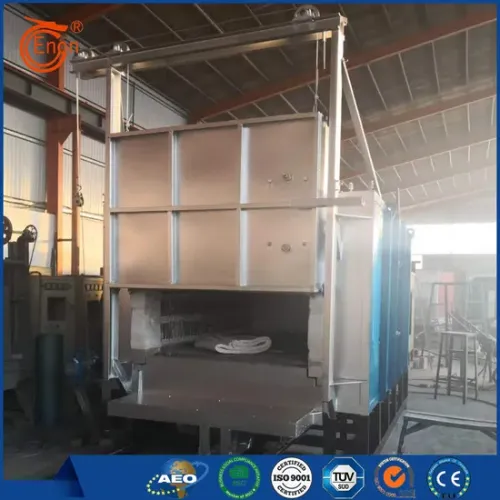

Modern Electric Box Roasting Furnace for Casting Needs

Modern Electric Box Roasting Furnace for Casting Needs

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao,Shandong,China
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other, Machinery Repair Shops

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Product advantages
1. Precise Temperature Control: This feature supports customizable multi-stage firing process curves, allowing flexible configuration of temperature and time parameters for each stage—heating, holding, and cooling—according to mold materials and structures. For complex silica sol molds used in the aerospace industry, multiple holding platforms with varying temperatures can be set to ensure sufficient decomposition and burnout of the binder within the mold, enhancing its strength and stability.

2. High Efficiency and Energy Saving: In addition to achieving efficient fuel gas utilization through precise combustion control, this feature also offers unique furnace insulation. The use of new composite refractory insulation materials, such as a combination of ceramic fiber modules and lightweight refractory bricks, effectively reduces heat loss from the furnace. The ceramic fiber modules offer low thermal conductivity, low heat capacity, and thermal shock resistance, effectively reducing heat loss from the furnace. The furnace surface temperature can be controlled below 60°C (at an ambient temperature of 25°C), significantly reducing heat loss compared to traditional furnaces and resulting in significant energy savings.

2.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

Supply Ability & Additional Information

Packaging: wooden box

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao,Shandong,China

Payment Type: T/T

Incoterm: FOB,CIF,EXW
