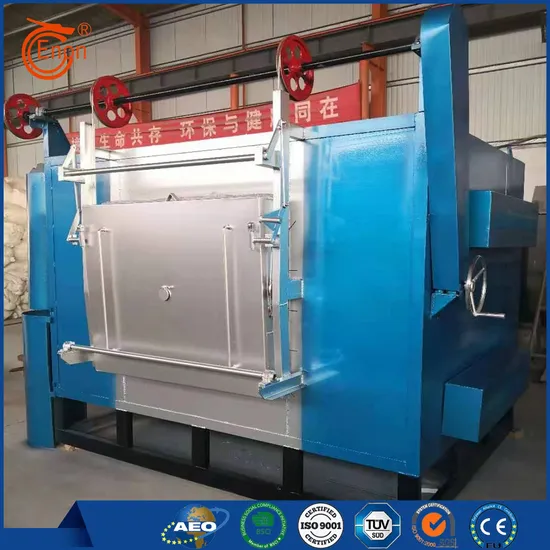

Electric energy-saving furnace investment casting equipment

Electric energy-saving furnace investment casting equipment

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Installation dimensions	mm	375023002600
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages

Traditional gas-fired regenerative roasting furnaces primarily utilize regenerators to recover heat from high-temperature flue gases, achieving heat recycling. During operation, gas and air mix and combust within the combustion chamber, generating a high-temperature flame and flue gases that heat the mold shells within the furnace. As the high-temperature flue gases pass through the regenerator, they transfer heat to the regenerator, raising its temperature. Subsequently, a reversing device redirects the flue gas flow, allowing cool air to pass through the regenerator, where it absorbs heat and becomes hot air before entering the combustion chamber, where it mixes with the gas for combustion, thereby improving energy efficiency.

However, this operating method has limitations. Over extended use, the regenerators can experience thermal fatigue and blockage, impacting heat recovery efficiency. Furthermore, frequent operation of the reversing device can easily lead to equipment failure and increase maintenance costs. Furthermore, due to the lag between the storage and release of heat by the regenerators, the accuracy of furnace temperature control is affected, making it difficult to meet the baking requirements of certain high-precision mold shells.

Supply Ability & Additional Information

Packaging: wooden box

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
