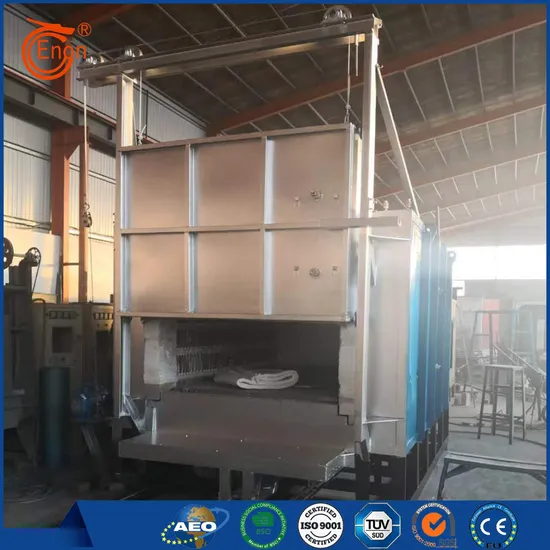

Box-type gas roasting furnace

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao
Model:	YN-XPL-1.4*1.3

$19120- /Piece/Pieces

19120USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2. Product Advantages

2.1 High Loading Capacity & Cost Efficiency

Capable of handling large workpieces with robust heat treatment capabilities, ensuring high operational efficiency and low operating costs.

2.2 Advanced Furnace Lining Design

The fully fiber-structured furnace lining offers superior thermal insulation compared to traditional brick chambers, significantly improving heat retention and energy efficiency.

2.3 Easy Installation & Mobility

Small and medium-sized furnaces require no foundation installation and feature integrated rails, allowing for flexible use on any level ground.

2.4 Multi-Zone Heating & Precision Control

Large-scale electric furnaces employ multi-zone heating with heating elements strategically installed on the door, back wall, and bogie. High-power models are equipped with automated multi-zone temperature control systems for enhanced temperature uniformity.

2.5 Fully Automated Operation

The furnace door and bogie are fully automated. Each electrical cabinet is fitted with multiple instruments and an automatic monitoring system to enable precise control and real-time observation.

3. Regenerative Burner System Overview

The regenerative burner system is designed to maximize energy efficiency and heating performance. It utilizes a regenerative heat recovery mechanism that significantly reduces fuel consumption and emissions while ensuring uniform temperature distribution across the furnace chamber.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
