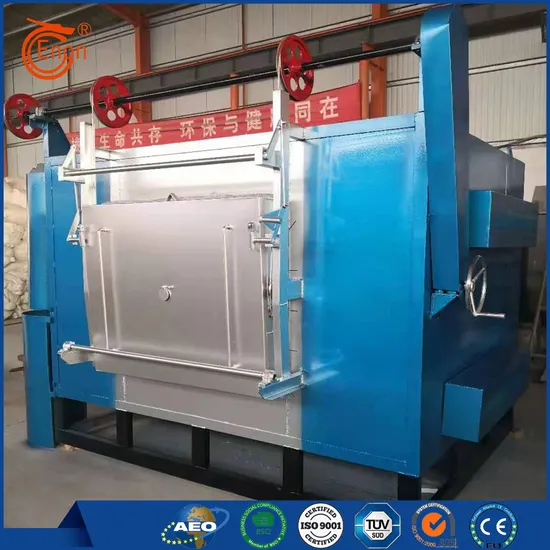

High Temperature Investment Casting Electric Furnace

High Temperature Investment Casting Electric Furnace

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao,Shandong,China
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Machinery Repair Shops, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Product Description

1.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages
1. Data-Based Precision Control

Trolley-type energy-saving gas-fired roasting furnaces are equipped with an intelligent control system that achieves precise control through real-time monitoring and analysis of multiple parameters, including furnace temperature, gas flow, and pressure. Sensors in the control system transmit the collected data to a central processing unit, which precisely controls the burner, fan, and other equipment based on pre-set energy-saving algorithms and process requirements. When the furnace temperature approaches the set point, the system automatically reduces the gas supply to the burner to avoid energy waste caused by temperature overshoot. When the furnace pressure fluctuates, the fan speed is promptly adjusted to maintain a stable pressure and ensure combustion efficiency. This data-based precision control ensures that the equipment always operates in an efficient and energy-efficient manner.

2. Production Process Optimization and Energy Saving

The intelligent control system can also optimize the entire production process, aligning with energy-saving goals. It can optimally schedule the entry and exit times of trolleys based on production plans and the actual firing status of mold shells, avoiding idle equipment. For example, when one trolley completes firing and exits the furnace, the system can quickly determine the loading status of the next trolley and schedule its entry into the furnace as quickly as possible, reducing heat loss within the furnace and energy consumption during standby time. At the same time, the system can record and analyze equipment operation data and provide enterprises with energy-saving improvement suggestions. For example, based on the roasting energy consumption data of different batches of mold shells, the system can optimize the process parameters of subsequent production and further tap the energy-saving potential.

Supply Ability & Additional Information

Packaging: wooden box

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao,Shandong,China

Payment Type: T/T

Incoterm: FOB,CIF,EXW
