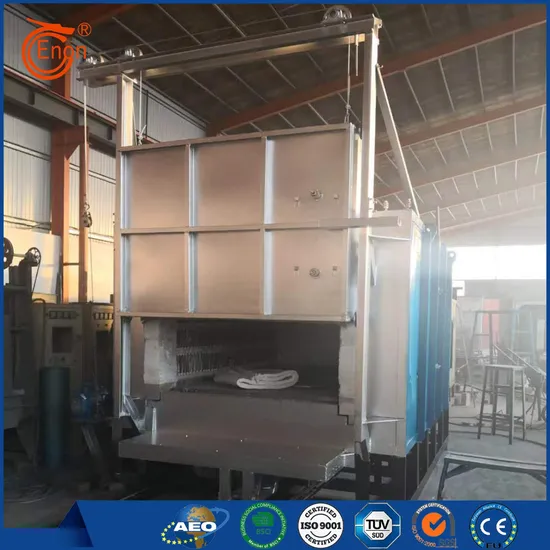

High Standard Energy Saving Electric Box Roasting Furnace

High Standard Energy Saving Electric Box Roasting Furnace

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao,Shandong,China
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages
1. Dynamically Adaptable Process Flexibility

This equipment supports over 10 custom process profiles, allowing precise parameter adjustments based on the varying mold materials. For silica sol molds, a 1-hour holding platform can be set at 600°C (to decompose residual organic matter), and a 2-hour strengthening platform can be set at 950°C (to enhance mold strength). For water glass molds, the high-temperature holding time can be shortened to 1 hour, reducing gas consumption. In contrast, traditional regenerative roasting furnaces can only set 2-3 simple profiles, failing to meet the diverse needs of complex molds.

2. Modular, Low-Maintenance Design

Key components utilize standardized modules: Consumable parts such as burner nozzles and ignition electrodes can be replaced manually (5 minutes per unit) without disassembling the furnace. The ceramic fiber modules utilize snap-on mounting, allowing for single module replacement in 30 minutes per unit in the event of local damage, eliminating the need for complete furnace relining. In contrast, replacing the regenerator in a traditional regenerative roaster requires dismantling the entire regenerator chamber, requiring only one to two days of maintenance per session. This improves maintenance efficiency by over 80%.

3. Visualized Intelligent Control

The equipment is equipped with a 10-inch touchscreen that displays 12 parameters in real time, including furnace temperature curves, gas flow, and trolley position. It supports remote monitoring (via a 4G module) and data storage (saving one year of roasting records). In the event of a gas leak or overtemperature, the system immediately shuts off the gas supply and displays a pop-up window indicating the fault location. Traditional regenerative roasters, on the other hand, can only detect problems through manual inspections, with a response time lag of over 30 minutes.

Supply Ability & Additional Information

Packaging: wooden box

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao,Shandong,China

Payment Type: T/T

Incoterm: FOB,CIF,EXW
