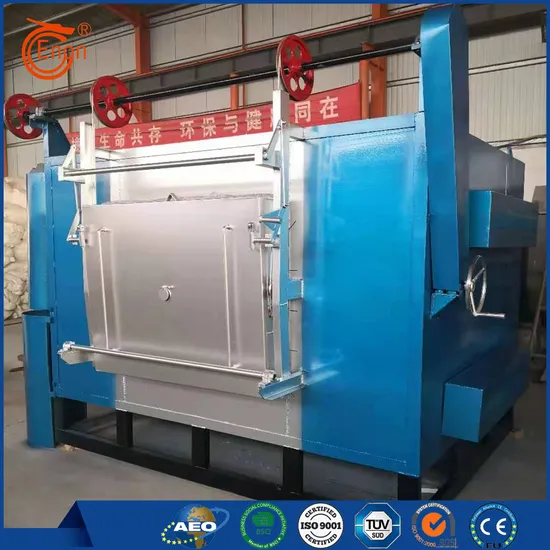

Electric Investment Casting Roaster for Energy Savings

Electric Investment Casting Roaster for Energy Savings

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Land,Ocean
Port:	Qingdao
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	580*580
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages
1. Energy Saving Advantage: In addition to the energy savings brought about by efficient combustion and excellent insulation mentioned above, this equipment can also precisely adjust gas usage based on actual production needs, avoiding gas waste. Compared with traditional gas-fired regenerative roasters, gas consumption per ton of formwork roasted can be reduced by 20%-30%, resulting in significant energy cost savings for businesses over the long term.

2. Maintenance Cost Advantage: The trolley-type energy-saving gas roaster features a rational structural design. Key components such as burners and thermocouples are standardized and modularized for easy replacement and maintenance. Furthermore, an intelligent fault diagnosis system promptly detects equipment failures and provides solutions, reducing equipment downtime and repair difficulties, thereby lowering maintenance costs.

3. Process Adaptability Advantage: The equipment can adapt to the firing process of formworks of various materials and complex structures. Whether it is silica sol formwork, water glass formwork, or other new formwork materials, high-quality firing can be achieved by adjusting the corresponding process parameters. This allows businesses to more flexibly adjust production processes to meet diverse order demands and expand their business scope.

Supply Ability & Additional Information

Packaging: wooden box

Transportation: Land,Ocean

Supply Ability: 50piece/Year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
