Box-Type Gas Roasting Furnace Hot Sale

$17400- /Piece/Pieces

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao,Shandong,China

Option:

YN-XPL-1.4*1.3

Contact Now

Product Description

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Certification: ISO 9001:2015

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	wooden box
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

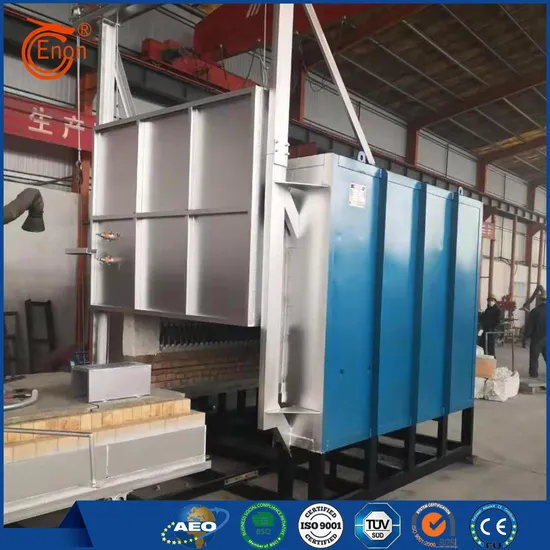

High-Efficiency and Energy-Saving Investment Casting Roasting Equipment Trolley-Type Resistance Furnace1



Product Description

Product Description

1.Product advantages
The trolley-type energy-saving gas roaster is equipped with a high-performance burner, a core component for precise combustion. For example, a common proportional modulation burner automatically and precisely adjusts the gas and air supply according to the required furnace temperature. The burner incorporates high-precision sensors that monitor the gas and air flow rates in real time. Using an intelligent control system, the burners mix the gases according to the preset optimal air-fuel ratio. The theoretical air-fuel ratio for natural gas is approximately 9.5:1. In actual operation, the burner precisely controls this ratio within a very narrow tolerance, ensuring complete combustion. Traditional burners can suffer from incomplete combustion due to air-fuel ratio imbalances, resulting in some unused energy being discharged with the flue gas, resulting in waste. The burner in the trolley-type energy-saving gas roaster ensures complete combustion, significantly improving thermal efficiency to over 85%, a 5%-15% improvement over traditional burners.

2.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage	KW	380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0
