Electric Box Roasting Furnace High Demand Solution

Electric Box Roasting Furnace High Demand Solution

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao,Shandong,China
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant, Machinery Repair Shops

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

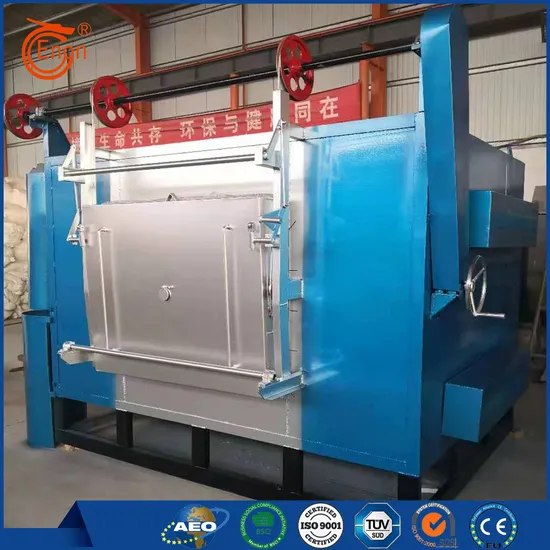

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages
To further improve combustion efficiency, this equipment utilizes staged combustion technology. During the initial heating phase, when the furnace temperature is relatively low, the burner operates in low-fire mode, slowly raising the furnace temperature with a smaller gas flow and air supply. This prevents damage to the mold shell caused by excessive thermal stress due to a sudden temperature rise, while also preventing excessive gas consumption. As the furnace temperature approaches the set point, the burner automatically switches to high-fire mode, increasing the gas and air supply to accelerate the heating process and meet the production schedule.

During the insulation phase, the burner dynamically adjusts the gas supply based on temperature fluctuations to maintain a stable furnace temperature. For example, if the furnace temperature drops slightly, the burner immediately increases the gas flow to quickly replenish heat; as the furnace temperature rises, the gas supply is reduced to prevent overheating. This staged combustion and dynamic adjustment technology avoids inefficient gas consumption and offers significant energy savings compared to traditional single-combustion modes.

Supply Ability & Additional Information

Packaging: wooden box

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao,Shandong,China

Payment Type: T/T

Incoterm: FOB,CIF,EXW
