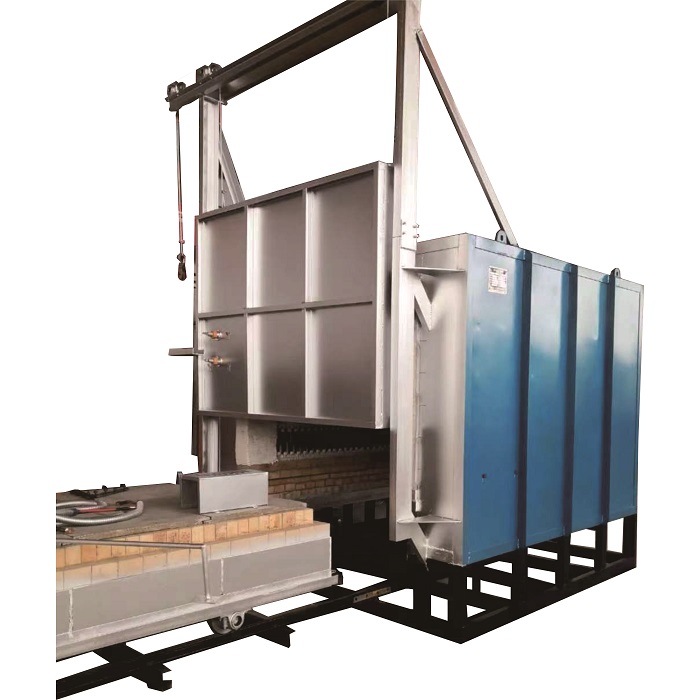

Trolley type investment casting roasting furnace

Trolley type investment casting roasting furnace

Payment Type:	T/T
Incoterm:	CIF,EXW,FOB
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Accurate Temperature Control

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages
The trolley-type energy-saving gas-fired roasting furnace breaks away from its reliance on heat storage media and instead employs a synergistic approach combining precise combustion, efficient heat retention, and intelligent control. On the heat generation side, its proportionally modulated burner monitors furnace temperature in real time and dynamically adjusts gas and air flow rates via a PLC system. When the furnace temperature falls below the set point, the burner automatically increases gas supply (with an accuracy of ±0.5% flow rate) and simultaneously adjusts the air damper to an optimal air-fuel ratio of 9.5:1, ensuring sufficient combustion (with a thermal efficiency exceeding 85%). On the heat retention side, the furnace body utilizes a composite insulation structure comprised of ceramic fiber modules and lightweight refractory bricks. The ceramic fiber modules have a room-temperature thermal conductivity of only 0.03W/(m·K). Combined with the labyrinth seal on the furnace door and the sand seal on the trolley, the furnace surface temperature (at an ambient temperature of 25°C) can be controlled below 60°C, reducing heat loss by 60% compared to traditional furnaces. More crucial is its "continuous temperature control without reversing" design: 8-12 K-type thermocouples are distributed throughout the furnace, collecting real-time temperature data from each zone. A PID temperature control algorithm fine-tunes the burner output in each zone based on these data differences (for example, when the furnace ends have low temperatures, the sidewall burner power is automatically increased), maintaining a stable temperature deviation within ±3°C. This entire process eliminates the need for regenerative elements, avoiding reversing losses and aging issues. Heat utilization efficiency is increased from 50%-60% in traditional equipment to over 80%.
