High standard box-type roasting furnace electric furnace

High standard box-type roasting furnace electric furnace

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
option:	YN-XPL-1.4*1.3

$1-17400 /Piece/Pieces

1~17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

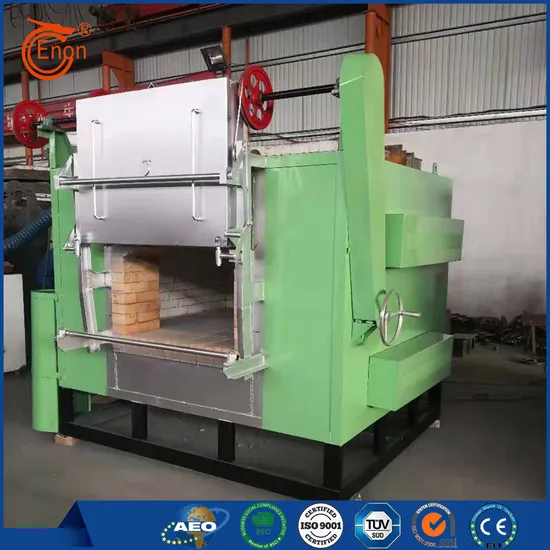

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages
Due to limited temperature accuracy, traditional regenerative heating equipment is only suitable for the production of simple, small and medium-sized castings. However, trolley-type equipment can cover a wide range of scenarios: meeting the high-precision firing requirements (temperature deviation of ±2°C) for medical implant molds (such as artificial joints) and the heavy-load demands of large wind turbine castings (single molds weighing 5-8 tons) (the trolley can carry up to 30 tons). After introducing this equipment, an aviation parts supplier successfully expanded its business for high-end castings such as complex blades and precision gears, increasing its order premium by 25%-30%.

Although traditional gas-fired regenerative heating furnaces achieved breakthroughs in waste heat recovery in the early days, they are limited by switching losses and temperature control accuracy, making them unable to meet the high-quality demands of modern investment casting. The energy-saving trolley-type gas-fired heating furnace, through its collaborative design of "precise combustion, efficient heat retention, and intelligent control," offers comprehensive advantages in casting quality stability, production efficiency, and energy costs. It is particularly suitable for companies with high-precision requirements and a wide range of product types. As the industry's requirements for casting quality and green production increase, trolley-type energy-saving gas roasting furnaces are gradually becoming the mainstream choice for the roasting process of investment casting.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
