Model No.: YN-XPL-1.4*1.3
Brand: Enon
Place Of Origin: China
Old And New: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc
Warranty Period: 1 Year
Core Selling Point: Energy Saving
Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Other
| Selling Units: | Piece/Pieces |
| Package Type: | wooden box |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it

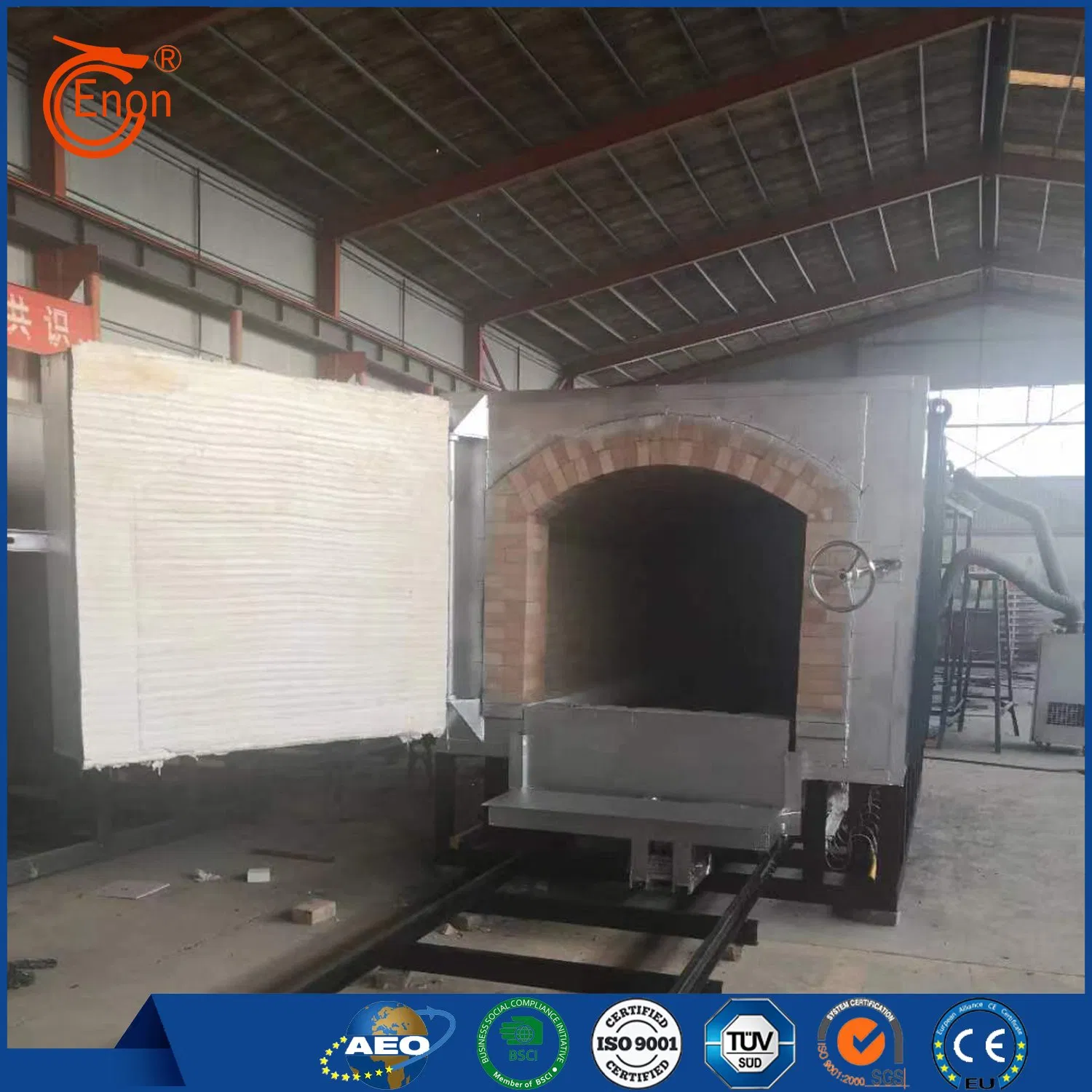

1,Technical parameter | Product name | The high standard electric box roasting furnace | |
| Model | unit | YN-XPL-1.4*1.3 |
| Active furnace space | mm | (1400*1300*700) |
| Throat size | mm | (580*580) |
| Rated working temperature | ºC | ≤1200 |
| Installed power | KW | 150-180 |
| The use of voltage | 380V | |
| Installation dimensions | mm | 3750*2300*2600 |
| Weight of equipment | T | 6.0 |
2. Product Advantages
2.1 Plug-and-Play Installation
Compact and medium-sized furnaces feature integrated rail systems and require no foundation, enabling immediate operation on any flat and stable surface.
2.2 Enhanced Processing Capacity
Designed for large components, the furnace provides substantial loading capacity and powerful heat treatment capability, delivering high productivity with low operating costs.
2.3 Multi-Zone Precision Heating
Large-scale electric furnaces utilize zonal heating technology with heating elements mounted on the door, rear wall, and bogie. High-power versions include multiple automated temperature control cabinets for independent and accurate zonal regulation.
2.4 Superior Thermal Insulation
The furnace lining employs a fully fiber-based structure, offering significantly improved heat retention compared to traditional brick-lined chambers.
2.5 Intelligent Automation System
Furnace door and bogie operations are fully automated. Each electrical cabinet is equipped with multiple instruments and automatic monitoring devices to ensure continuous and precise operational control.
Packaging: wooden box
Transportation: Ocean,Land
Supply Ability: 500piece/Year
Certificate: ISO 9001:2015
Port: Qingdao,Shandong,China
Payment Type: T/T
Incoterm: FOB,CIF,EXW
