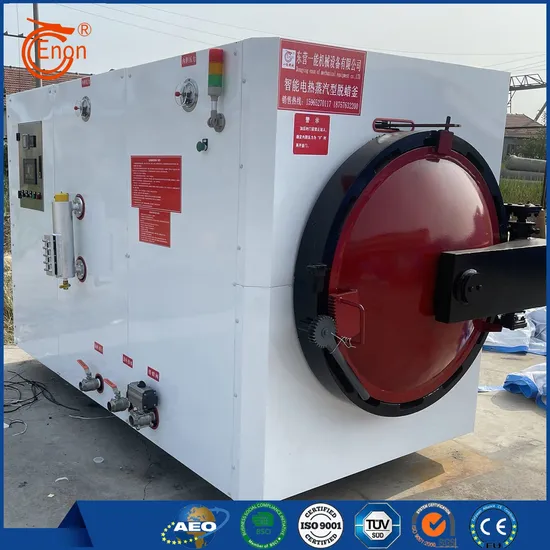

Electric Steam Dewaxing Machine Sale

$26180- /Piece/Pieces

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	QINGDAO

Model:

YN-DTF-1400Z

Option:

YN-DTF-1400Z

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: YN-DTF-1400Z

Brand: Enon

Origin: China

Certification: ISO 9001:2015

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Spare Parts, Field Maintenance And Repair Service, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	wooden box
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

Investment Casting Foundry Dewaxing Machine1



Product Description

1.technical parameter

Model	YN-DTF-1400Z
working pressure	0.85MPa
working temperature	185ºC
Design pressure	0.95MPa
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 243kw

2. Main Features and Advantages

2.1 Heating Power: Heating power typically ranges from 144 to 180 kW. For example, Dalian Chengda's CD-TLF1200 dewaxing reactor comes standard with 144 kW of heating power, and an optional 180 kW heating power is available upon request to accommodate high-load production. Multiple heating elements are distributed around the inner tank to achieve uniform heating, ensuring a uniform temperature field within the reactor and consistent dewaxing results.

2.2 Operating Pressure and Design Pressure: The operating pressure range is similar to that of the Φ1000×1100mm equipment, generally between 0.75 and 0.9 MPa, with a design pressure of 1.0 MPa. The equipment boasts a fast inflation time of ≤15 seconds, reaching operating pressure quickly. Pressure fluctuations are controlled to ≤±0.02 MPa, ensuring pressure stability during the dewaxing process and improving dewaxing quality. Temperature Control: The temperature control range is 160-180°C. To ensure temperature uniformity within such a large inner chamber, some equipment utilizes multi-zone heating control technology. For example, ten groups of 18kW heating tubes are installed to control heating in different zones, achieving a temperature uniformity of ±3°C. This effectively prevents problems such as incomplete dewaxing or mold damage caused by temperature unevenness.
