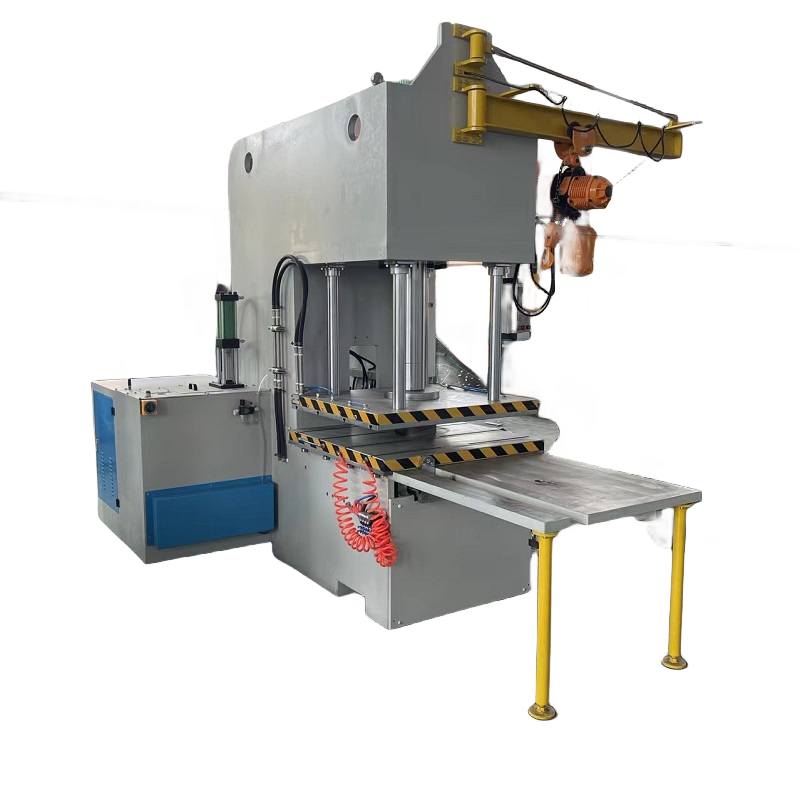

C-type single-station wax injection machine

C-type single-station wax injection machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-DMZ-30CB-Y

$27940- /Piece/Pieces

27940USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DMZ-30CB-Y

Brand: Enon

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Main fatures and advantages：
1.Intelligent Control, Precision and Efficiency: Equipped with a PLC intelligent control system, the entire wax injection process is precisely controlled. This not only significantly improves work efficiency but also ensures wax pattern accuracy, resulting in precise dimensions and smooth surfaces, meeting the high-precision requirements of castings.

2.Flexible Pressure and Flow Adjustment: Mold clamping pressure, wax injection pressure, and flow rate can all be adjusted to meet different product requirements. This high level of flexibility allows companies to quickly adjust equipment parameters to produce qualified wax patterns for a wide variety of product types, significantly enhancing their ability to adapt to market conditions.

2.Technical parameter：

Explain	Unit	YN-DMZ-30CB-Y
Clamping force (max)	T	30
Minimum height of the mold	mm	100
Up and down the mold trip	mm	500
Mold use space(L×W×H)	mm	700×800×600
Maximum wax injection (wax cylinder)	L	3.3
The nozzle is electrically powered up and down	YES/NO	YES
PLC+Touch screen	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
hydraulic oil tank	L	150
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

Note: The lower workbench of this Wax Injection Machine can be moved

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
