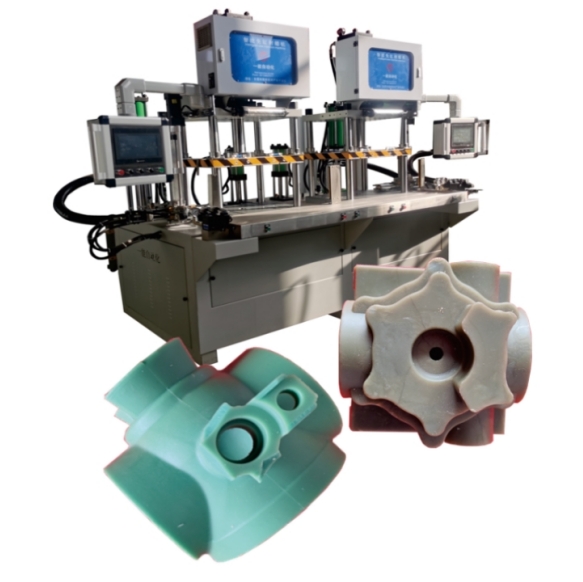

Double Column Free Cylinder Wax Injection Machine

Double Column Free Cylinder Wax Injection Machine

Transportation:

Ocean,Land

$247001-2 Piece/Pieces
$245003-4 Piece/Pieces
$243005-9 Piece/Pieces
$24000≥10 Piece/Pieces

$ 24000 - 24700 / Piece/Pieces

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-16LB-Y

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc, Gear, Pump, Motor

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Explain	Unit	YN-SMZ-16LB-Y
Clamping force (max)	T	16
Mold use space(L×W×H)	mm	520×570×600
Up and down the mold trip	mm	600
Minimum height of the mold	mm	100
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode

2,Configuration instructions

1. Dual-Station Independent Control: The two injection molding stations can operate completely independently, with separate temperature settings and adjustments to meet the differentiated temperature control requirements of different molds.

2. Intelligent Mold Cooling System: Both the upper and lower mold plates feature built-in chilled water circulation channels, which automatically circulate a cooling medium (such as chilled water) to quickly and evenly remove heat from the mold, ensuring precise mold temperature control.

3. Highly Compatible Mold Mounting Design: The equipment features T-slots machined in the balancing direction of the fixed and movable plates, and pre-installed M12 T-nuts, facilitating quick and flexible installation and securing of molds of various sizes.

4. Clean Air Supply: The system includes a compressed air filtration device to effectively remove moisture, oil, and impurities, ensuring clean and dry compressed air supply and guaranteeing the reliability and lifespan of pneumatic components.

5. Programmable Pneumatic Core Puller: Each station is equipped with three pneumatic core pullers (single cylinder head with magnetic induction). The user only needs to connect the Φ10.0mm air pipe to the corresponding interface of the mold to use it; the order of each set of core pulling, triggering timing and other parameters can be independently and flexibly set on the touch screen to adapt to complex molding processes.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: SO 9001:2015
