Model No.: YN-DMZ-25LB-Y
The file is encrypted. Please fill in the following information to continue accessing it
1.The equipment is also equipped with an advanced PLC control system, featuring a high-performance programmable controller with powerful logic and data processing capabilities. The control system includes multiple built-in wax injection process parameter templates, allowing operators to directly access the corresponding templates based on different product models, greatly simplifying the operation process. The PLC control system also features comprehensive fault diagnosis capabilities, monitoring the operating status of each equipment component in real time. Upon detecting an abnormality, it immediately issues an alarm signal and displays the fault location and cause, facilitating prompt intervention by maintenance personnel.

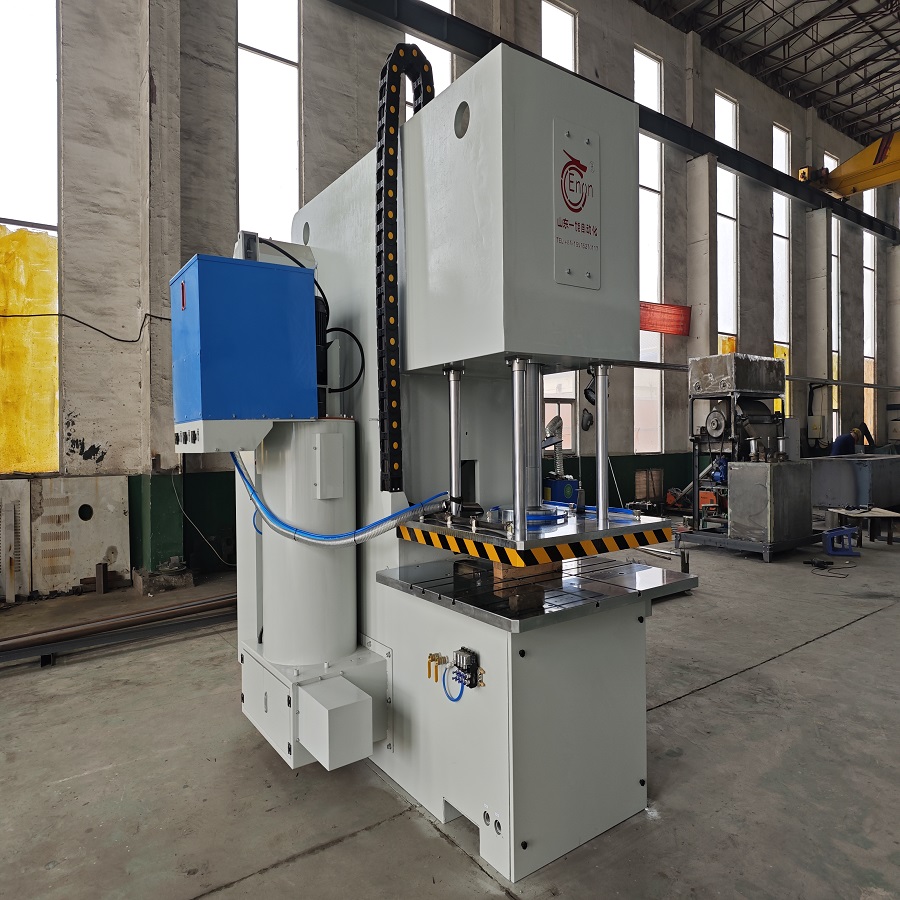

2.Furthermore, the mold clamping section of the equipment utilizes a "C-shaped frame + quick-locating pin" structure. Constructed from a single piece of high-strength alloy steel and precision-machined and heat-treated, the C-shaped frame boasts a rigidity of 2000N/μm, providing stable support during mold closing and preventing deformation that could affect the accuracy of the wax pattern. The quick-locating pins utilize a conical surface for positioning, achieving a positioning accuracy of up to 0.02 mm. This eliminates the need for repeated calibration during mold assembly, significantly reducing mold change time.
2.Technical parameter：
| Explain | Unit | YN-DMZ-50CB-Y |
| Clamping force (max) | T | 50 |
| hydraulic oil tank | L | 175 |
| PLC+Touch screen | YES/NO | YES |
| The nozzle is electrically powered up and down | YES/NO | YES |
| Mold use form |
| Can be up and down fixed automatic mode, hand push single mode or double mode |
| Paraffin pressure form |
| Single and multiple segments can be selected |
| Maximum wax injection (wax cylinder) | L | 3.3 |
| Maximum injection pressure | MPa | 0~10 (Hydraulic variable pressure control ) |
| Mold use space(L×W×H) | mm | 1000×1000×700 |
| Up and down the mold trip | mm | 600 |
| Minimum height of the mold | mm | 100 |
Note: The lower workbench of this Wax Injection Machine can be moved
