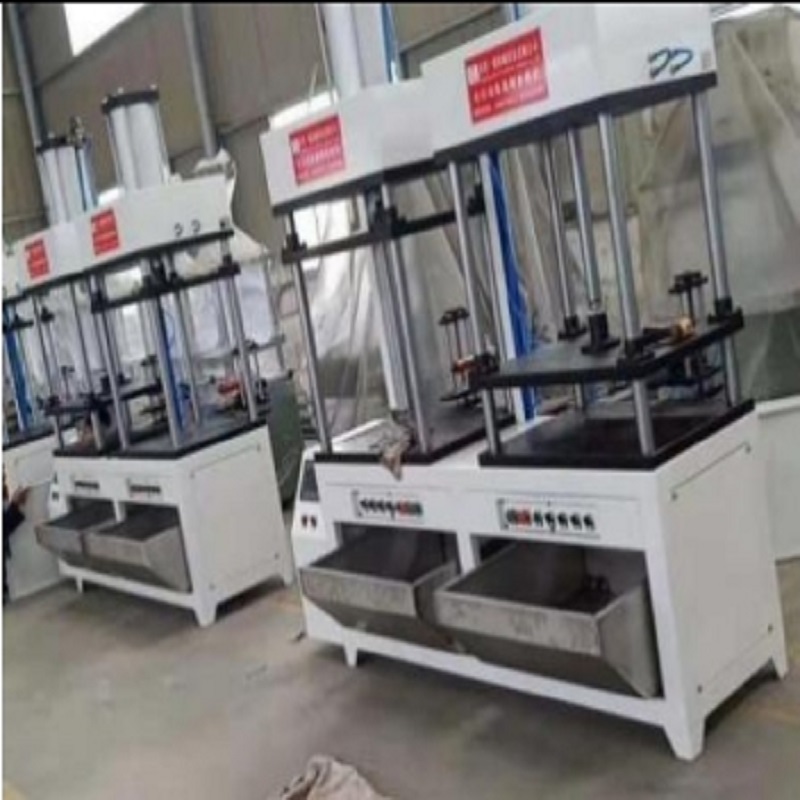

Fully automatic four-station wax injection machine

Fully automatic four-station wax injection machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Land,Ocean
Port:	qingdao
Model:	YN-SDJ-140/4Z

$19000- /Piece/Pieces

19000USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-SDJ-140/4Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Clamping Cylinder	Φ250 x 500 mm
Mold Space: (D x W x H)	650 x 650 x 700 mm
Worktable Height	900 mm
Maximum Injection Pressure	0-0.6 MPa (Variable Pressure)
System Temperature Control	40-58 ± 0.05°C (Adjustable Depending on Wax Material)
Wax Tank Capacity	140 L
Overall Dimensions: (Length)	4400 mm x (Width) 1870 mm x (Height) 2550 mm
Maximum Injection Pressure	0-0.6 MPa (Variable Pressure)

1.This fully automatic pneumatic four-station low-temperature Wax Injection Machine utilizes pneumatic propulsion throughout, ensuring smooth and reliable operation. Both mold closing and injection pressure are freely adjustable.

2. This fully automatic four-station pneumatic low-temperature wax injection machine is fully PLC-controlled. Signals from the mold pressing cylinder, wax injection cylinder, nozzle translation cylinder, wax gun, ejector pin, and insert/extract core are all connected to the PLC. The advantages of this pneumatic four-station system include high production efficiency and product quality.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Land,Ocean

Supply Ability: 120piece\year

Certificate: ISO9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
