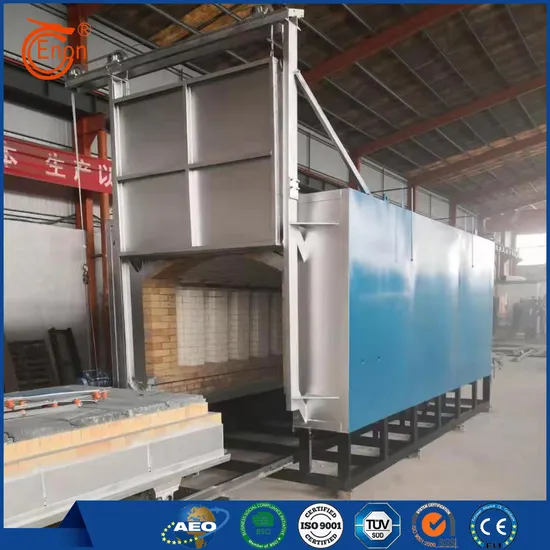

High-Temperature Industrial Electric Furnace Solutions

High-Temperature Industrial Electric Furnace Solutions

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qinghdao,Shandong,China
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Introduction of regenerative burner

The process compatibility with a wide range of mold types expands the scope of casting production. Whether it's water glass molds (requiring firing temperatures of 800-1000°C, focusing on binder decomposition), silica sol molds (requiring higher temperatures for structural strengthening), or complex composite molds (differentiated temperature control for different parts), the equipment can meet your needs with customizable process profiles. For example, the mold for automotive turbocharger blades has a complex structure with both thin and thick wall sections. The equipment can be configured with a dedicated "slow heating - staged holding - slow cooling" profile: a slow heating rate of 5°C/min from 200-500°C prevents cracking in thin walls due to rapid evaporation of moisture; a two-hour holding period at 950°C ensures sufficient binder burnout in thick wall sections. Ultimately, the mold achieves a 40% improvement in strength consistency across all parts, reducing casting scrap rates from 8%-12% with conventional equipment to 3%-5%. Dimensional accuracy remains stable at CT6-CT7 levels, with a surface roughness of Ra ≤ 6.3μm.

2.Product advantages
    2.1 Large loading capacity, strong heat treatment ability for large workpiece,high efficiency and low operation cost.
   2.2 The furnace linings is made of the complete fiber structure, compared to the brick furnace chamber, effectively improve the performance of heat preservation.
     2.3 For the small and medium size furnace, no need to installation basic foundation, integration of rail, can be used on a level ground.
   2.4 Large -scale electric furnace adopts multiple district heating, in order to improve the temperature uniformity, the heating elements are installed at the furnace door, back wall and bogie, high-power electric furnace, equipped with multi automatic temperature control cabinet, respectively for district heating automatic temperature control.
     2. 5 The operation of the furnace door and bogie is full automatic control. Each electric box is equipped with several pieces of instrument and automatic observer which can provide the cont

3.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

Supply Ability & Additional Information

Packaging: wooden box

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qinghdao,Shandong,China

Payment Type: T/T

Incoterm: FOB,CIF,EXW
