Electric Roasting Furnace Solutions for Investment Casting

Electric Roasting Furnace Solutions for Investment Casting

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao,Shandong,China
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Molding Technics: /Precision Casting

Application: Machinery Parts

Material: Carbon Steel

Surface Preparation: Spray-Paint

Surface Roughness: Ra0.1

Machining Tolerance: +/-0.02mm

Standard: GB

Certification: ISO 9001:2015

After-sales Service: 1years

Warranty: 1years

The Use Of Voltage: 380V

Weight Of Equipment: 6.0t

Transport Package: Tray

Specification: 1.4*1.3

Trademark: Enon

Origin: Made in China

Production Capacity: 500piece/Year

Customization: Available

Casting Method: Directional Crystallization

Process: Lost Wax Casting

Shipping Cost: Contact the supplier about freight and estimated delivery time.

Machine Type: Hot Chamber Die Casting Machine

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Place Of Origin: China

Old And New: New

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Applicable Industry: Manufacturing Plant, Other, Machinery Repair Shops

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Product Description

1.Technical parameter

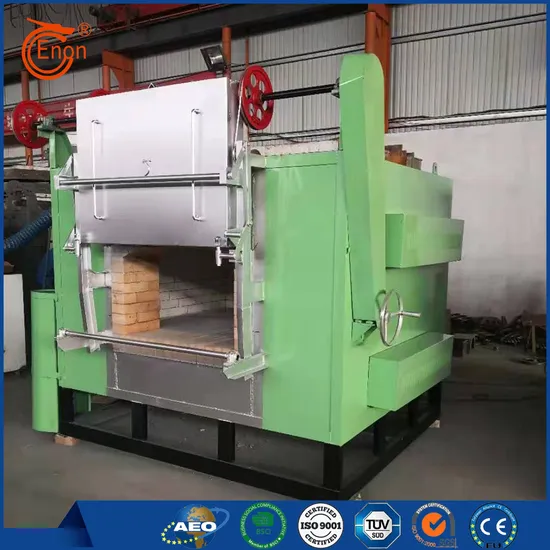

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages
1. Strengthened Structural Design: The furnace frame is optimized using finite element analysis, ensuring optimal stress distribution and strong load-bearing capacity. The trolley travel mechanism utilizes heavy-duty transmission components, and the driving wheels and rails undergo special heat treatment, increasing wear resistance by over 50%, ensuring reliable operation despite frequent in-and-out furnace loading and unloading. Key burner components, such as the German-made ignition transformer and flame detector, are imported or customized domestically, ensuring high stability and minimizing downtime.

2. Convenient Maintenance of Consumable Parts: The refractory insulation material utilizes a modular design, with ceramic fiber modules and lightweight refractory bricks for easy replacement. Burner consumable parts (such as nozzles and ignition electrodes) utilize standardized interfaces for quick installation and removal. The trolley's refractory lining is equipped with inspection windows and access doors for easy inspection and maintenance of the internal structure, reducing the difficulty and cost of equipment operation and maintenance, ensuring long-term stable operation and a mean trouble-free operating time of over 8,000 hours.

Supply Ability & Additional Information

Packaging: wooden box

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao,Shandong,China

Payment Type: T/T

Incoterm: FOB,CIF,EXW
