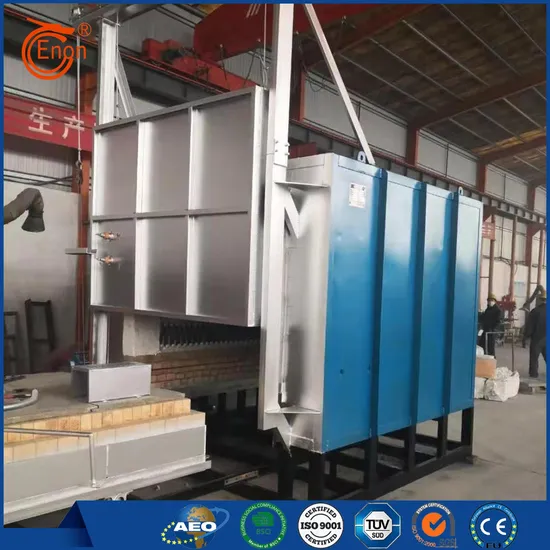

Electric box-type roasting furnace for foundries

Electric box-type roasting furnace for foundries

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Land,Ocean
Port:	qingdao
Model:	YN-XPL-1.4*1.3

$19120- /Piece/Pieces

19120USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantage

Furnace Door

The main body of the furnace door is welded from steel plates and steel sections, with thick steel frames surrounding it. This ensures overall rigidity and strength while reducing weight. The fiber lining is secured with a hanging riveted method, effectively ensuring the fiber's durability from frequent opening and closing, extending the door's service life. The furnace door features a thickened ceramic fiber blanket, and the steel plates on the door and furnace face are 6mm thicker.

The furnace door is electrically operated. To prevent damage to the door's sealing strips, the door moves up and down, separating approximately 80mm from the furnace body during lifting. This prevents deformation of the steel structure and ensures a reliable seal during prolonged high-temperature operation. The door's lifting speed is 6m/min.
