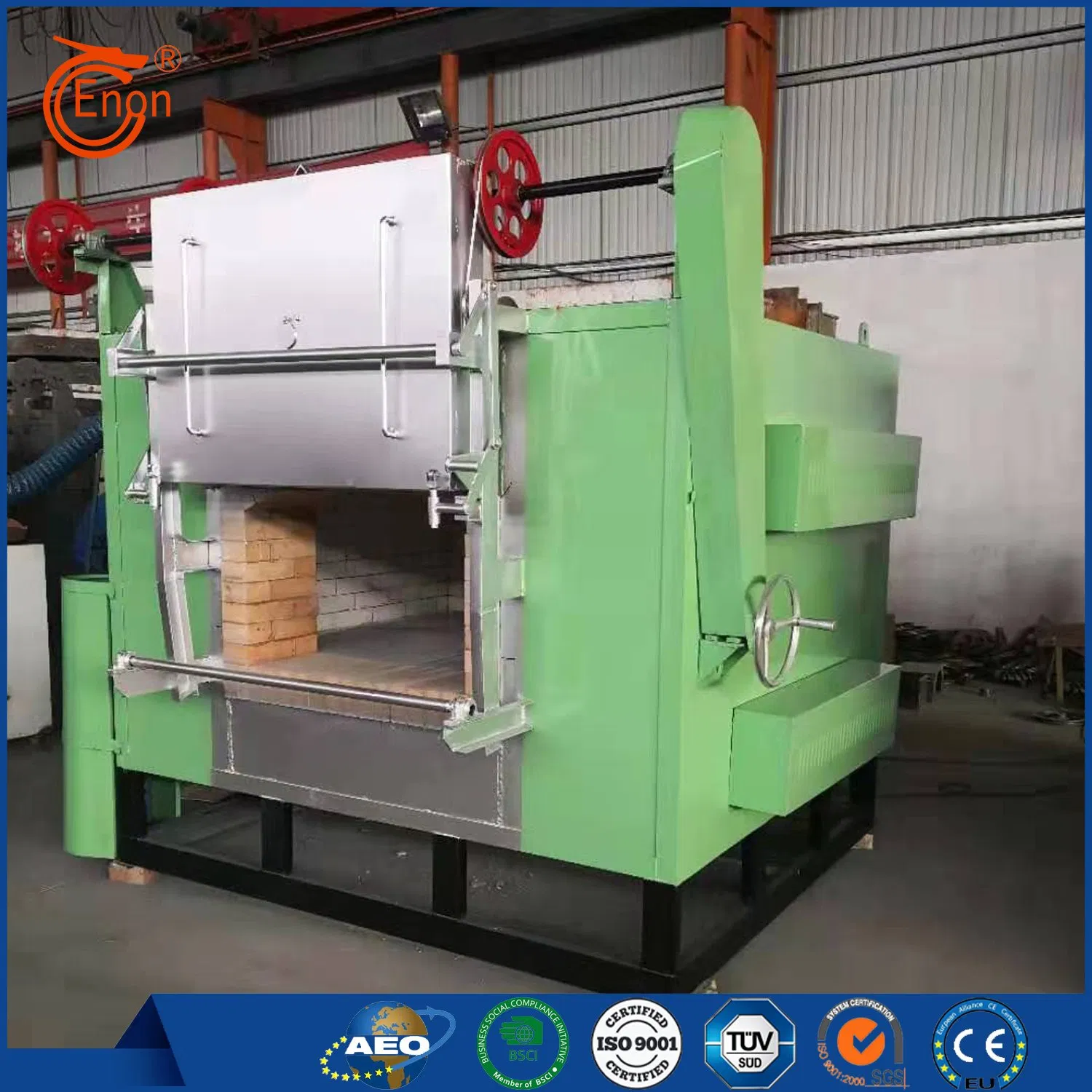

Electric heating baking furnace for molding

Electric heating baking furnace for molding

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao
Model:	YN-XPL-1.4*1.3

$19120- /Piece/Pieces

19120USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

1. Furnace Body

The furnace body consists of a furnace shell and a furnace lining.

The furnace shell is welded from steel sections to form a frame structure. Furnace shell steel plates (≥4mm thick) are welded to the inner surface of the frame and secured with channel steel. A 100mm thick high-aluminum fiber blanket is added around the furnace body.

Burners are located in the side walls of the furnace shell, where they are located. Ignition burners are installed at the rear of the furnace. The connection between the burner and the furnace body is cast with external refractory cement to prevent fire.

The furnace lining utilizes a combination of national standard high-aluminum refractory bricks and prefabricated fiber modules with a bulk density of 220kg/m³. This structure minimizes thermal conductivity, facilitating thermal insulation of the furnace lining. High-aluminum refractory bricks are used as the refractory layer in the high-temperature section of the furnace lining. These bricks are perpendicular to the heating surface, resulting in minimal shrinkage (less than 4%) at high temperatures and excellent resistance to high temperatures and airflow erosion. Therefore, this method has been widely adopted in similar furnace types and has achieved good results. The furnace lining has good airtightness and is easy to maintain, and the service life of the furnace lining is long; high-temperature refractory cement is poured on the refractory bricks on the furnace roof.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO9001：2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
