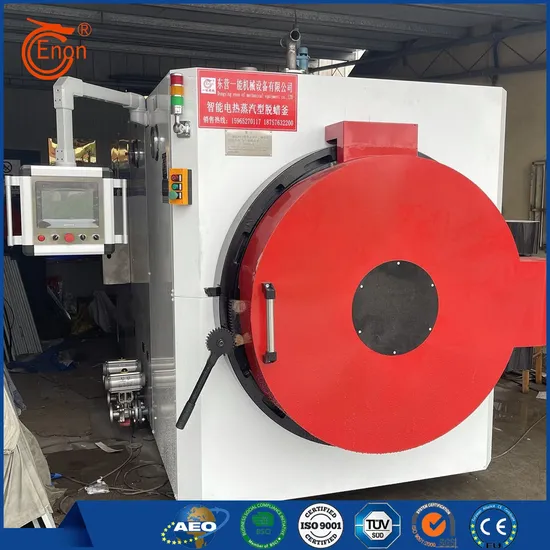

Small Steam Dewaxing Machine - For Sale

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Port:	qingdao
Model:	YN-DTF-1000Z

$15880- /Piece/Pieces

15880USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTF-1000Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Spare Parts, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Model	YN-DTF-1000Z
working space	φ1000×1100mm
working pressure	0.85MPa
working temperature	185ºC
Design pressure	0.95MPa
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 123kw
dimensions	3250×1740×2150
weight	2.75T

2.Heating System

The heating system utilizes highly efficient and energy-saving electric heating elements and is equipped with an intelligent temperature control device to ensure a stable and energy-efficient heating process. This design not only improves dewaxing efficiency but also effectively reduces energy consumption, ensuring efficient operation while being more energy-efficient and environmentally friendly.

(VII) Electrical Control System

The electrical control system utilizes advanced microcomputer control technology, boasting a high degree of intelligence and automation. The user interface is simple and intuitive, allowing operators to complete complex dewaxing processes with simple operations. The system also features comprehensive protection features, monitoring equipment operating status in real time. Upon detecting any abnormalities, it immediately issues an alarm and takes appropriate measures to ensure the safety of both equipment and operators.

3.Comprehensive Safety Protection

Recognizing that safety is the cornerstone of production, the electric steam dewaxing kettle is equipped with comprehensive safety protection mechanisms. Mechanical pressure protection acts as a sturdy shield, ensuring that furnace pressure remains within a safe range. Electronic pressure protection, through intelligent monitoring, immediately shuts off power if pressure exceeds the set range, preventing potential problems before they occur. Temperature-controlled indirect pressure protection cleverly monitors pressure indirectly through temperature changes, adding an extra layer of safety to equipment operation. When the water level falls below the set point, a water shortage alarm sounds, simultaneously shutting off the heater power to prevent dry-burning. An overtemperature alarm sounds when the temperature rises abnormally, protecting the equipment from heat damage. The process time alarm thoughtfully reminds operators when the process time has expired, ensuring precise control of the production process. Furthermore, a safety valve automatically opens in the event of abnormal pressure, providing a final line of defense for equipment safety.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
