Model No.: YN-DTF-1200Z
Brand: Enon
Place Of Origin: China
Old And New: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc
Warranty Period: 1 Year
Core Selling Point: Easy To Operate
Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Applicable Industry: Other, Manufacturing Plant
| Selling Units: | Piece/Pieces |
| Package Type: | Wooden box packaging |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Model | YN-DTF-1200Z | ||||
| working space | φ1200×1500mm | ||||
| working pressure | 0.85MPa | ||||
| working temperature | 185ºC | ||||
| Design pressure | 0.95MPa | ||||
| Voltage regulating range | 0~0.85MPa | ||||
| Boost rate | 0.6MPa/5s | ||||
| power | 380V/50Hz 153kw | ||||
| dimensions | 4250×2050×2150 | ||||
| weight | 4.2T | ||||

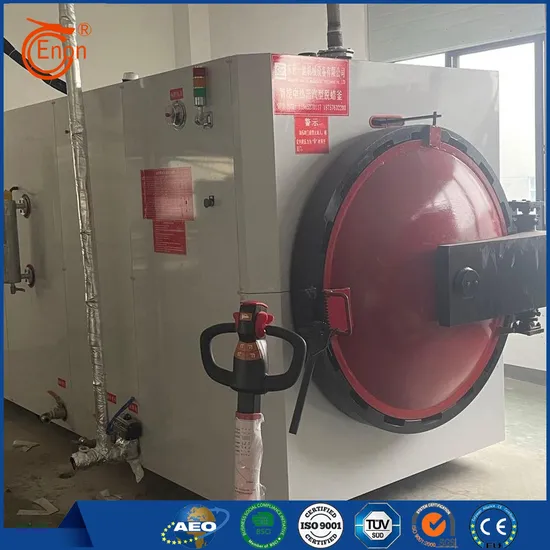

Electric Steam Dewaxing Kettle: Enhancing Industrial Efficiency with Precision
In today's advanced industrial landscape, the electric steam dewaxing kettle stands out as a versatile and indispensable solution, integrating high performance and intelligent design. It goes beyond basic functionality to embody a dedication to operational excellence and energy-efficient production. With broad applicability across sectors such as aerospace, automotive, precision machining, and artisanal manufacturing, this equipment serves as a catalyst for innovation and productivity.
I. System Architecture: Engineered for Durability and Performance
The electric steam dewaxing kettle is composed of seven core subsystems, each precision-engineered to ensure reliability, safety, and efficiency.
(1) Furnace Assembly
The furnace is fabricated from industrial-grade stainless steel, meeting boiler material standards. This selection guarantees structural integrity and corrosion resistance, supporting consistent performance under high-temperature and high-pressure conditions.
(2) Kettle Structure
The kettle employs a dual-compartment design, with an inner vessel made of high-tensile 345R alloy and an outer shell of Q235B carbon steel. This configuration improves mechanical strength and thermal efficiency while minimizing heat loss, resulting in faster and more energy-effective dewaxing.
(3) Door and Sealing System
The kettle door operates via a geared ring mechanism and incorporates dual interlocking—both mechanical and electronic—to enhance operational safety. A pressurized inflatable seal ensures leak-proof closure during operation. Hinges and support bases are constructed from reinforced materials, and a built-in opening limiter prevents over-extension and potential impact, contributing to long-term operational stability.
Packaging: Wooden box packaging
Transportation: Ocean,Land
Supply Ability: 120piece/year
Certificate: ISO 9001:2015
Port: qingdao
Payment Type: T/T
Incoterm: FOB,CIF,EXW
