Model No.: YN-DTF-1000Z
Brand: Enon
Place Of Origin: China
Old And New: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc
Warranty Period: 1 Year
Core Selling Point: Easy To Operate
Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Spare Parts, Online Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Applicable Industry: Manufacturing Plant, Other
| Selling Units: | Piece/Pieces |
| Package Type: | Wooden box packaging |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
1,Technical parameter | Model | YN-DTF-1000Z | ||||
| working space | φ1000×1100mm | ||||
| working pressure | 0.85MPa | ||||
| working temperature | 185ºC | ||||
| Design pressure | 0.95MPa | ||||
| Voltage regulating range | 0~0.85MPa | ||||
| Boost rate | 0.6MPa/5s | ||||
| power | 380V/50Hz 123kw | ||||
| dimensions | 3250×1740×2150 | ||||
2. Product Introduction

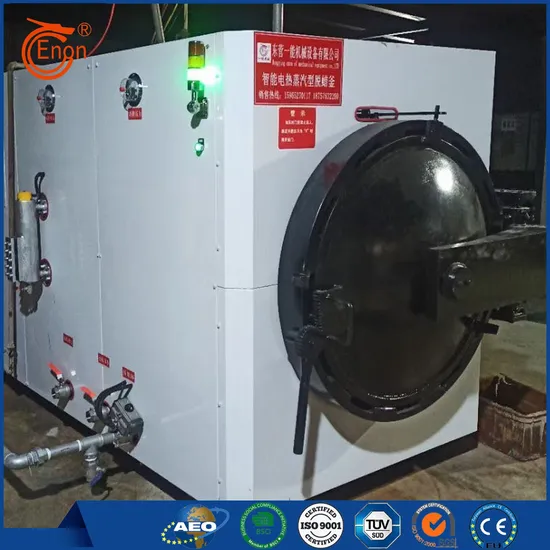

The DTF electric steam dewaxing kettle represents a critical component within our precision Casting Equipment series. Developed specifically for dewaxing mid-shell investment casting molds, it integrates cutting-edge innovations from global and domestic technologies. Designed with emphasis on operational security, functional stability, and user-oriented performance, the system achieves quick steam generation, thorough wax removal, high energy efficiency, and eco-friendly operation—making it a superior solution for modern precision foundry demands.
3. Core Features and Benefits
3.1 Dual-Compartment Pressure Vessel
Constructed with a two-layer pressure-resistant architecture, the kettle’s outer vessel operates under continuous high temperature and pressure. This sustains the inner surface temperature above 150 °C, preventing condensation formation, shortening heat-up time, lowering steam usage, reducing shell fracture rates, and yielding reclaimed wax with minimal moisture content.
3.2 System Construction and Workflow Support
The structural core consists of a reinforced kettle body, load-bearing base, quick-actuating door, built-in wax recovery tank, heating assembly, electrical control system, and protective housing. A tailor-made transport trolley aids in the efficient movement of mold shells and baskets, ensuring smooth and ergonomic operation throughout the dewaxing process.
The rapid-opening door system is designed for both safety and efficiency, reducing opening/closing time while maintaining a secure seal. A safety interlock prohibits door release when the exhaust valve remains closed, enforcing strict operational safety. Users can also fine-tune the process pressure within the equipment’s certified operating range via an intuitive regulation interface.
3.3 Multi-Level Safeguards and System Control
Included protection and monitoring features comprise:
Low-water-level auto-cutoff to halt heating and prevent element damage；
Over-temperature protection with alert and immediate power disconnection；
Packaging: Wooden box packaging
Transportation: Ocean,Land
Supply Ability: 120piece/year
Certificate: ISO 9001:2015
Port: qingdao
Payment Type: T/T
Incoterm: FOB,CIF,EXW
